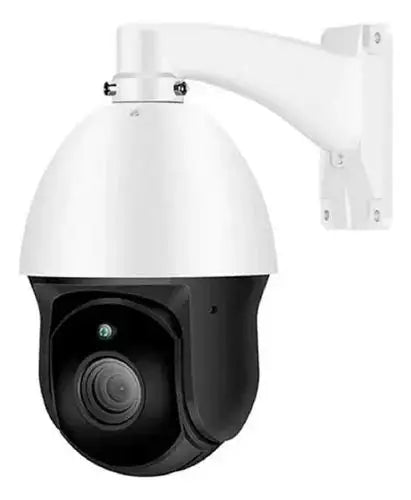

WatchAi 5" 5MP Smart Full-color Speed Dome - 30x Optical Zoom / 30fps

WatchAi 5" 5MP Smart Full-color Speed Dome - 30x Optical Zoom / 30fps

$0.00 NZD
$0.00 NZD
Sale Sold out
CAMERA

  • SENSOR

    1/2.7" Progressive CMOS





  • EFFECTIVE PIXELS

    2720 x 1976, 5MP, 2.0 μm





  • MIN. ILLUMINATION

    Color: 0.01 lux, B/W: 0.001 lux





  • LENS

    4.3 - 129mm, 30x Zoom Optical





  • FOV

    Horizontal: 62.7oW ~ 2.5oT, Vertical: 37.1oW ~ 1.4oT





  • IRIS

    Dual IRIS, P-Iris, Auto- Iris, F1.6





  • ELECTRONIC SHUTTER

    1 - 1/10K sec





  • DAY/NIGHT

    Automatically removable IR-cut filter





  • WDR

    Multi Exposure HDR ≥ 140db Ultra WDR





  • EIS

    Support





  • DEFOG

    Support





  • EXPOSURE

    Off, WB, BLC, HLC





  • IR ILLUMINATION

    Illumination distance: 200m





  • ROTATION

    90o, 180o, 270o rotation





ENCODE

  • VIDEO ENCODING

    H.265, H.264, MJPEG



  • MAX RESOLUTION

    H.265 HDR 5MP @30fps + 720p @30fps H.264 HDR 5MP @30fps + 720p @30fps MJPEG 1080p @30fps



  • STREAM

    Up to 4 Individually configurable streams in H.265, H.264,MJPEG, Configurable Resolution/frame rate/bandwidth



  • VIDEO BITRATE CONTROL

    Support VBR / CBR in H.265, H.264 Smart LBR Feature Coding



  • AUDIO ENCODE

    G.711 / G.726 / AAC / LPCM, 2-way stream



INTERFACE

  • AUDIO

    1x Audio In, 1x Audio Out, Terminal Block



  • ALARM

    4x Alarm In, 2x Alarm Out, Terminal Block



  • POWER

    DC12V Terminal Block ,AC24V Terminal Block



  • RS485

    Support, Terminal



  • NETWORK PORT

    1x RJ45 10/100Mbps Ethernet



PAN/TILT

  • PAN/TILT RANGE

    Pan: 0 ~ 360° endless, Tilt -20 ~ 100°



  • MANUAL SPEED

    Pan: 0.1 ~ 90°/s, Tilt: 0.1 ~ 55°/s



  • PRESET SPEED

    Pan: 300°/s, Tilt: 300°/s



  • PRESET

    256



  • PTZ MODE

    8 Sequence, 8 Cruise, 4 Auto pan



FUNCTION

  • EVENT TRIGGERS

    External Input, Analytics, Network Failure Detection, Periodical Event, Manual Trigger



  • EVENT ACTIONS

    External output Activation, Video and Audio recording to edge storage, Upload FTP/ Network share/Email



  • ANALYTICS

    Motion Detection, Audio Detection



  • SMART ANALYTICS

    Face Detection/Tracking/Recognition, LPR Detection/ Recognition People Detection and Tracking, Human/Vehicle Classification Object Classification/Recognition



  • NOTIFICATIONS

    HTTP, FTP, Email



  • PRIVACY MASKING

    Support



  • CORRIDOR MODE

    90°, 180°, 270° rotation



GENERAL PARAMETER

  • PROTECTION RATE

    IP66/ IK10 Vandal Body



  • CASING

    Metal and Plastic



  • WORKING TEMPERATURE

    -40°C ~ 50°C / -40°F ~ 122°F with heater



  • STORAGE TEMPERATURE

    -20C°~ 70C° / -4°F ~ 158°F



  • HUMIDITY

    10% ~ 95%, No Condensation





  • APPROVALS

    EMC CE / FCC, Safety LVD



  • DIMENSION

    Ф 207.4 x 300.4 mm / Ф 8.14” x 11.83” with Sunshield



  • WEIGHT

    3.8 Kg / 8.3lb



  • POWER SUPPLY

    4-pair UPoE, max ~40 watt, AC24V, max 44 watt, max 64.90 VA
