SKU:CK-4TF8250-2.8-8480-2HD
Watch AI 4K CCTV Kit - 4 X 8MP Turret Cameras With 8CH 2TB HDD NVR
Watch AI 4K CCTV Kit - 4 X 8MP Turret Cameras With 8CH 2TB HDD NVR

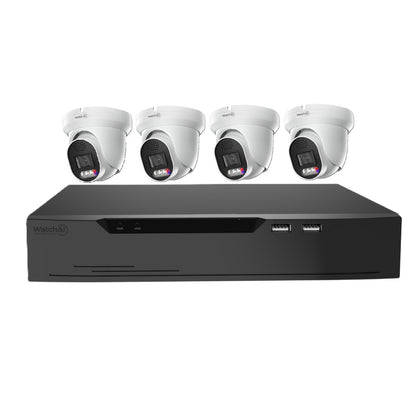

This WatchAI surveillance kit includes four 4K Ultra HD IP cameras paired with an 8-channel NVR featuring built-in 2TB HDD storage and PoE support. The system supports up to eight IP cameras and offers smooth decoding for 8MP, 1080P, and D1 streams. With HDMI 4K output, intelligent video analytics, motion-triggered recording, and remote access via P2P, it provides robust and flexible security coverage for homes, businesses, or industrial sites.
Couldn't load pickup availability
40 in stock
View full details
More Information
Key Features
• Complete Camera Capabilities:
Includes four 4K Ultra HD IP cameras with 8MP resolution for sharp, detailed video. Equipped with infrared night vision for low-light monitoring, wide dynamic range (WDR) for clarity in high-contrast scenes, and built-in microphones for audio capture. Weatherproof IP67-rated enclosures ensure reliable outdoor performance in harsh conditions.
• Advanced NVR System:
8-channel network video recorder supports up to eight IP cameras, with smooth decoding of 8MP, 1080P, and D1 streams. Features a built-in 2TB HDD for extended recording time, eight IEEE 802.3af PoE ports to power cameras directly, and 4K HDMI output (3840 × 2160) for high-definition display. ONVIF compliance allows integration with compatible third-party cameras.
• Flexible Recording and Playback
Offers manual, scheduled, and motion-triggered recording modes to suit diverse security needs. Multi-channel playback allows simultaneous review of up to eight channels, making event analysis more efficient. USB export function enables easy footage backup and archiving.
• Intelligent Video Detection:
Incorporates smart analytics including motion detection, line crossing, intrusion alert, loitering detection, and object classification. AI-based detection identifies people and vehicles to reduce false alarms and prioritise real threats.
• Connectivity and Protocol Support:
Supports P2P, ONVIF, RTSP, and other standard network protocols for remote access and system integration. Easily connects to external displays, network storage, or management platforms.
• Mobile Monitoring and Control:
Setup, live viewing, playback, and push notifications are available via the WatchAI app, which is free to download on Google Play and the Apple App Store. Allows flexible surveillance control from smartphones or tablets.
Product Specifications

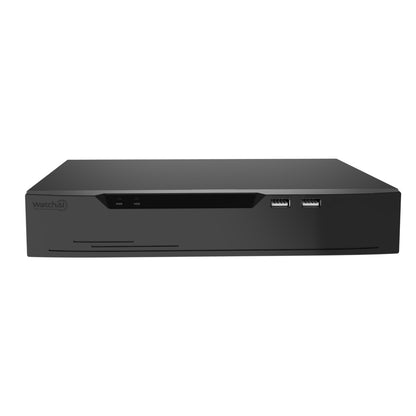

1. NVR Specifications – WatchAI SN-NVR3708E1-P8
1.1 Channels: 8-channel IP camera input
1.2 PoE Ports: 8× PoE (802.3af), max 48W
1.3 HDD: 1× SATA, supports up to 8TB (2TB included)
1.4 Bandwidth: 40 Mbps incoming / 40 Mbps outgoing
1.5 Video Output:
- HDMI up to 4K (3840×2160)
- VGA up to 1080p
1.6 Decoding:
- 1ch @ 8MP
- 4ch @ 1080p
- 8ch @ D1
1.7 Recording Resolution: 8MP → D1
1.8 Recording Modes: Manual, Schedule, Event
1.9 Trigger Events: Motion, Video Loss, IVS analytics
1.10 Playback: 8/4/1-channel sync play
1.11 Backup: USB or Network
1.12 Network Protocols: HTTP/HTTPS, IPv4/IPv6, RTSP, NTP, DHCP, P2P, DDNS, UPnP, SNMP, 3G/4G, PPPoE
1.13 Interoperability: ONVIF, SDK, CGI
1.14 Interfaces:
- 1× RJ45 LAN
- 2× USB 2.0 (front), 1× USB 2.0 (rear)
- HDMI, VGA, Audio Out
1.15 Operating Temp: –10°C to +50°C
1.16 Certifications: CE/FCC, RCM
1.17 Dimensions: 255 × 235 × 45.3 mm
1.18 Weight: 1 kg (without HDD)

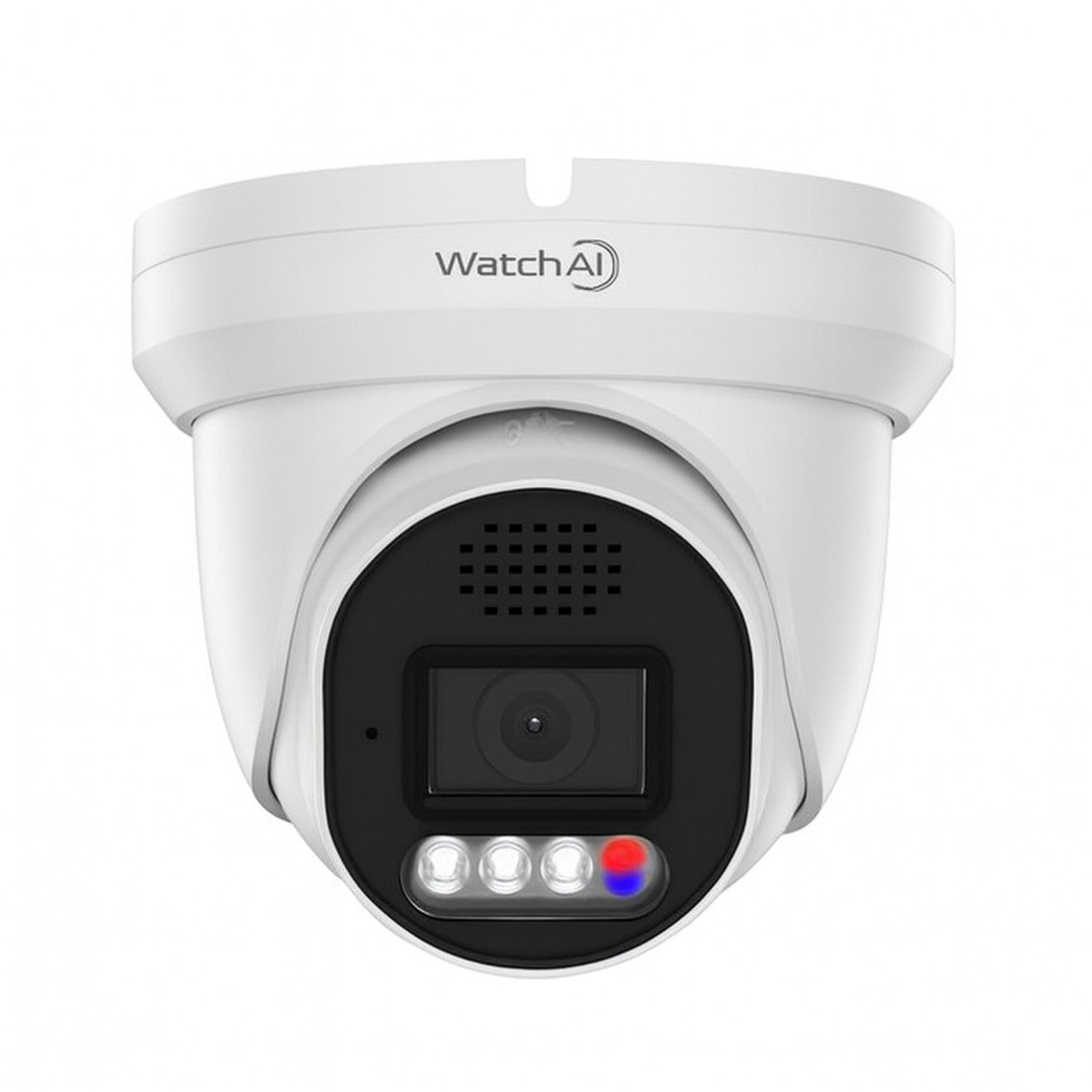

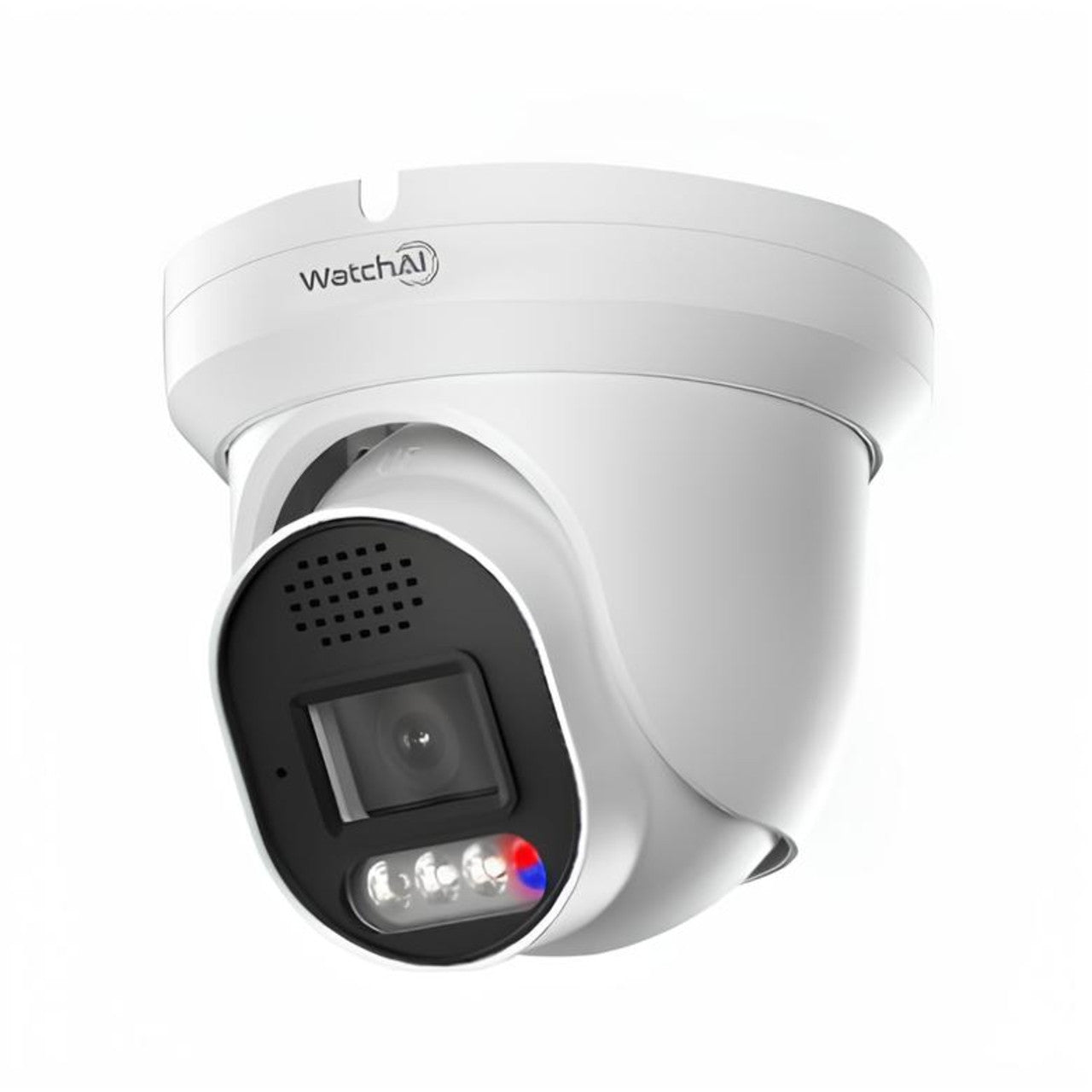

2. Camera Specifications – WatchAI SN-IPV7182HNBC-B (x4 units)
2.1 Sensor: 1/2.7" Progressive Scan CMOS
2.2 Resolution: 8MP 4K (3840×2160) @ 25fps
2.3 WDR: True WDR
2.4 Min Illumination:
- Color: 0.01 Lux (F1.6)
- B/W: 0 Lux with light
2.5 Lens Options: 2.8mm (default), 4mm optional
2.6 Field of View (2.8mm): H 110.9°, V 60°
2.7 Illumination & Deterrence
- IR Distance: Up to 30m
- Warm-Light Distance: Up to 20m
- Warning Lights: Built-in red/blue strobe
- Audio Deterrence: Built-in speaker (sound warning)
2.8 AI Features
- Multi-Object Detection: Human, vehicle, face
- Intelligent Analytics:
• Intrusion
• Line crossing
• Loitering
• Wrong-way
• Illegal parking
• Smart motion detection
• People counting
- Event Triggers: IVS, abnormal sound, network alarm, disk alarm
- Privacy Masking: 4 zones
2.9 Video/Audio
- Streams: Triple-stream
- Bitrate: 200 kbps – 16 Mbps
- Audio: Built-in mic + speaker
2.10 Network
- Protocols: IPv4/IPv6, HTTP/HTTPS, RTSP, TCP/UDP, NTP, DHCP, SNMP, 802.1x
- Interoperability: ONVIF Profiles S/T/G/M
2.11 General
- Storage: MicroSD slot (up to 1TB)
- Power:
• 12VDC
• PoE (802.3af)
- Power Consumption: Max 12.5W with deterrent on
- Ingress Protection: IP66
- Operating Temp: –30°C to +60°C
- Material: Aluminium alloy body
- Dimensions: Ø111 × 100.8 mm
- Weight: 0.43 kg
3. Included in the Kit
3.1 4× 8MP WatchAI Active Deterrence Turret Cameras
3.2 1× 8-Channel NVR with PoE
3.3 1× Pre-installed 2TB Surveillance HDD
3.4 4× Camera mounting hardware
3.5 8× PoE ports for direct plug-and-play
3.6 User manuals & setup guides
