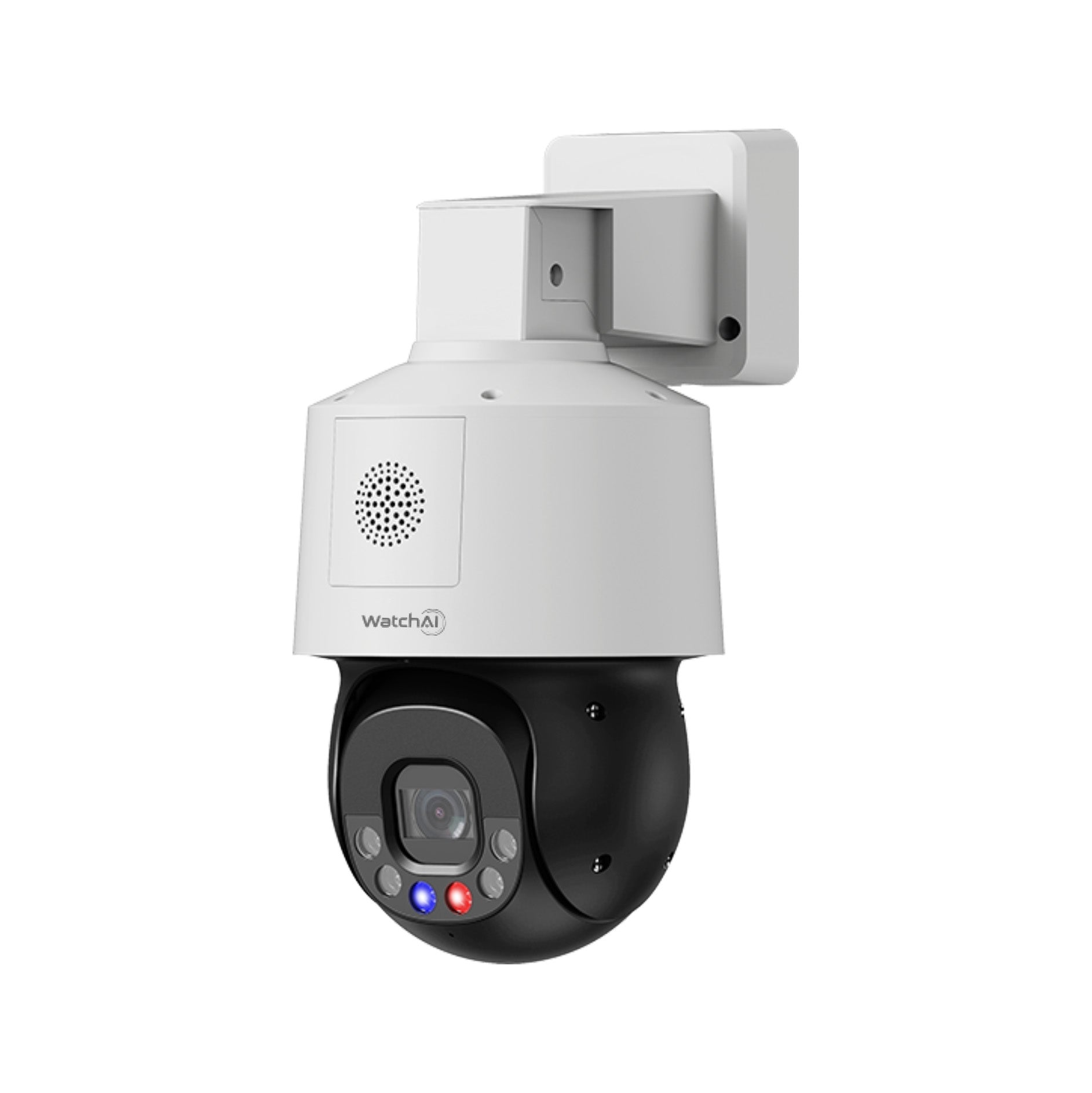

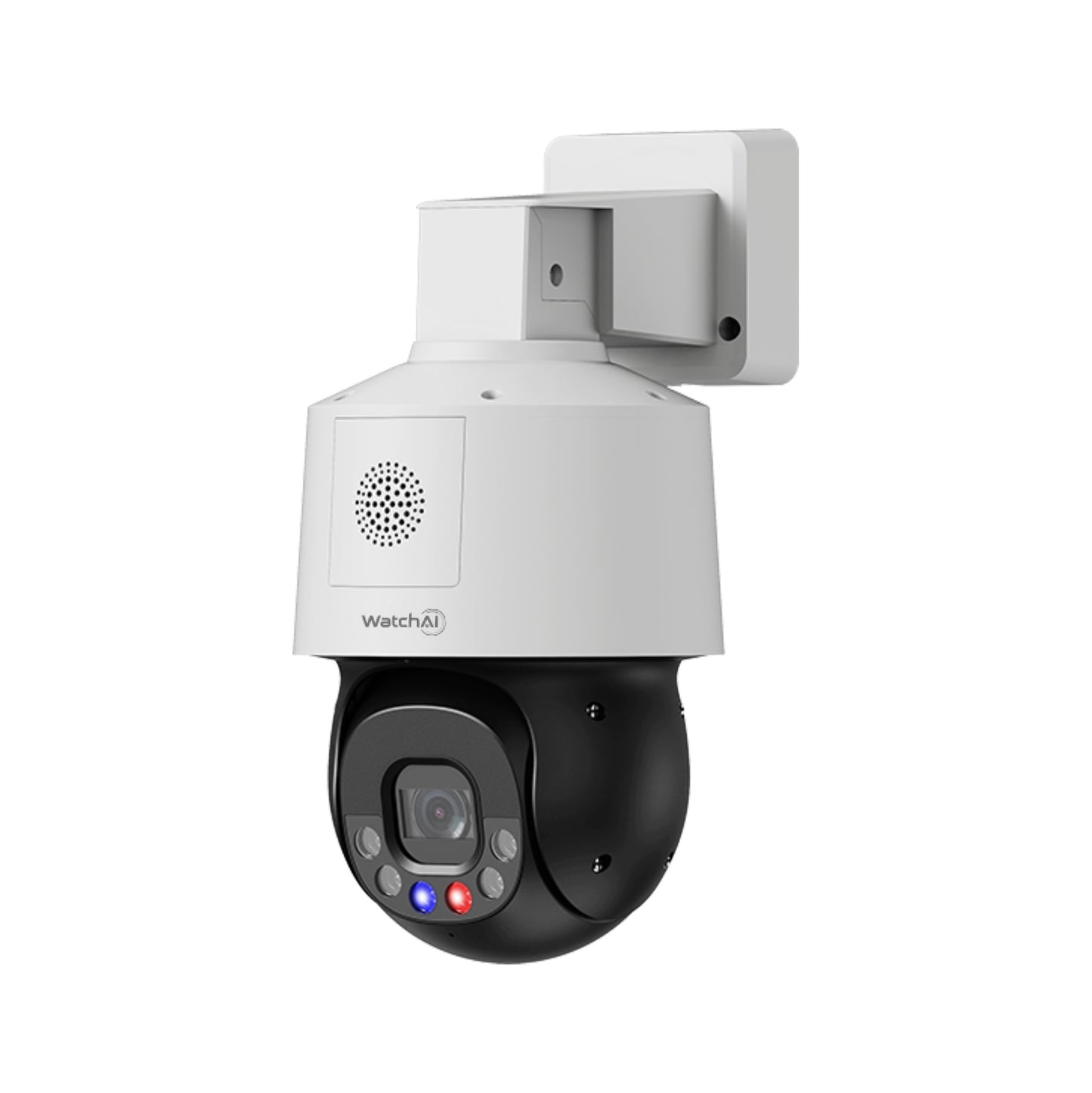

WatchAi 3" 5MP Active Deterrence Speed Dome - 5x Optical Zoom
WatchAi 3" 5MP Active Deterrence Speed Dome - 5x Optical Zoom
High-performance 5MP PTZ speed dome with 5× optical zoom, 16× digital zoom, and advanced active deterrence including red/blue strobe lights and sound-light alarms. Features deep-learning AI detection, auto-tracking, 50m IR, 30m warm-light, built-in mic/speaker, True WDR, anti-shake, and IP66 weather protection—ideal for professional surveillance.
Couldn't load pickup availability
100 in stock
View full details
More Information
Key Features
- 5× optical zoom + 16× digital zoom for long-range detail capture
- AI detection for face, human, and vehicle classification
- Smoke & fire detection plus smart motion detection
- Auto-tracking & perimeter protection using deep learning
- Built-in red/blue warning lights + customizable sound-light alarms
- Smart dual illuminator: 50m IR & 30m warm-light range
- True WDR, 3D DNR, Defog, Anti-shake for clarity in all conditions
- Built-in mic, speaker, SD card support up to 512GB
- IP66 weatherproof housing for outdoor reliability
Product Specifications
### CAMERA
1. Image Sensor: 1/2.7" Progressive Scan CMOS
2. Max Resolution: 2880(H) × 1620(V)
3. Shutter: Auto/Manual, 1/5 to 1/20,000s
4. Minimum Illumination:
- Color: 0.01 Lux @ F1.6, AGC ON
- B/W: 0.001 Lux @ F1.6, AGC ON
- 0 Lux with IR/Warm Light
5. Day/Night: IR-cut filter
### LENS & ZOOM
6. Focal Length: 2.7mm to 13.5mm
7. Aperture: F1.66 to F3.03
8. Angle of View:
- Horizontal: 111.5° to 32.3°
- Vertical: 57.5° to 17.9°
9. Optical Zoom: 5×
10. Digital Zoom: 16×
11. Focus Control: Auto/Manual/Semi-Auto
### ILLUMINATION
12. IR Distance: Up to 50m
13. Warm-Light Distance: Up to 30m
14. Illuminator Types: IR + Warm Light
15. Illumination Control: Auto/Manual
### PTZ CONTROL
16. Pan Range: 0° to 355° endless
17. Tilt Range: –20° to +90°
18. Pan Speed: 0.1° to 60°/s (preset: 60°/s)
19. Tilt Speed: 0.1° to 50°/s (preset: 50°/s)
20. Presets: 400
21. Patrol Scan: 6 Tracks, 12 Scan, 12 Patrol (up to 32 presets per patrol)
22. 3D Positioning: Supported
23. Power-Off Memory: Supported
### VIDEO
24. Streams: 3
25. Stream 1 Resolutions: 2880×1620, 2560×1440, 2304×1296, 1920×1080, 1280×720 @ 25/30fps
26. Stream 2: D1, VGA, 640×360, CIF, QVGA @ 25/30fps
27. Stream 3: VGA, CIF, QVGA @ 25/30fps
28. Bitrate Control: CBR/VBR
29. Bitrate:
- Stream 1: 200 kbps to 12 Mbps
- Stream 2: 100 kbps to 6 Mbps
- Stream 3: 100 kbps to 3 Mbps
30. Video Enhancements: HLC, BLC, Defog, Anti-Shake
31. WDR: True WDR
32. ROI: Supported
### AUDIO
33. Compression: G.711 (64 kbps), RAW_PCM (128 kbps)
34. Built-in Microphone
35. Built-in Speaker (max distance 60m, 45–48 dB)
36. Sound Warning: Customizable alarm sounds
### AI & SMART FEATURES
37. Multi-Object Detection: Face, Human, Vehicle
38. Intelligent Analytics: Intrusion, Single/Double Line Crossing, Loitering, Wrong-Way, Illegal Parking
39. Smoke & Fire Detection: Supported
40. People Counting: Supported
41. Smart Motion Detection: Supported
42. Smart Tracking: Supported
### NETWORK
43. Protocols: IPv4/IPv6, TCP/IP, HTTP/HTTPS, RTP/RTSP, IGMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, 802.1X, ARP, QoS, TLS
44. Interoperability: ONVIF, SDK, CGI
45. Max Users: 10
46. Web Viewer: IE11, Chrome, Firefox, Edge
### INTERFACE & STORAGE
47. Network: 1× RJ45 (10/100 Base-T)
48. Alarm I/O: 1× Input, 1× Output
49. SD Card Slot: Up to 512GB
50. Reset Button: Supported
### ELECTRICAL & ENVIRONMENTAL
51. Power Supply: 12VDC / PoE+ (IEEE 802.3at)
52. Power Consumption: < 19.5W (full IR + warm light + speaker + PTZ + defogging)
53. Operating Temperature: –30°C to +60°C
54. Humidity: < 90% RH
55. Ingress Protection: IP66
56. Certifications: CE / FCC
### PHYSICAL
57. Casing: Metal + Plastic
58. Dimensions: 174.4 × 138.8 × 270.9 mm
59. Net Weight: 1.28 kg
60. Optional Mounts: SN-CBK101 (Pole), SN-CBK102 (Corner)
