SKU:SN-IPP8086MEAC-B

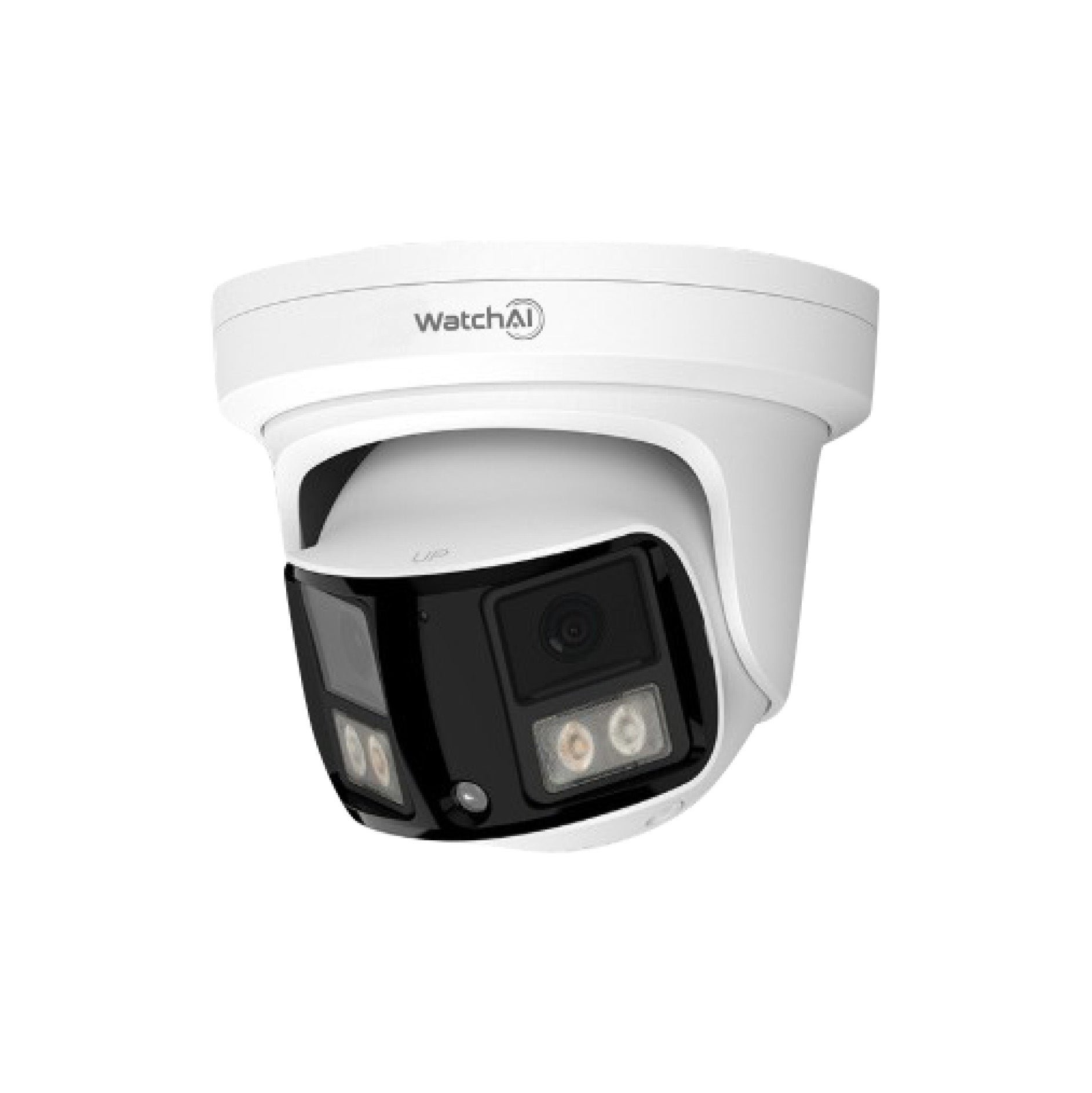

WatchAi 180° 2x 5MP Panoramic Dual Lens Turret
WatchAi 180° 2x 5MP Panoramic Dual Lens Turret
High-performance 180° panoramic turret camera featuring dual 5MP STARVIS sensors for a seamless 8MP stitched view. Equipped with red/blue deterrent lights, IR and warm-light illumination, AI analytics, built-in mic & speaker, alarm I/O, and SD storage. Provides wide-area coverage with powerful smart detection in all lighting conditions.
Couldn't load pickup availability
100 in stock
View full details
More Information
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 66 Feet
- Panoramic 1.68mm, 180° lens; ONVIF Profile S Compliant
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Built-in Microphone, Triple Video Streams, Defog, Dewarping, Backlight Compensation and 3D DNR
- Intelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- PoE & 12VDC Power Options and Optional Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- 3-way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Housing
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Product Specifications
### CAMERA
1. Sensor: 2 × 1/2.8” STARVIS CMOS
2. Total Resolution: 8MP (4224 × 1848) @ 25/30fps
3. Lens: Fixed 2.4mm
4. Day/Night: ICR (Infrared Cut Filter)
5. Illumination:
- IR distance: up to 30m
- Warm light: up to 20m
### VIDEO FEATURES
6. Video Compression: H.265 / H.264
7. Image Enhancements: True WDR, Defog, HLC, BLC, IVS
8. Panoramic stitched 180° viewing
### SMART DETECTION & IVS
9. Detection: Face / Human / Vehicle
10. IVS Analytics:
- Intrusion
- Single Line Crossing
- Double Line Crossing
- Loitering
- Wrong-Way
- Illegal Parking
- Smart Motion Detection (SMD)
- People Counting
- Heat Map
### ACTIVE DETERRENCE
11. Red & blue warning strobe lights
12. Sound-light active warning support
### AUDIO & ALARM
13. Built-in microphone
14. Built-in speaker
15. Alarm I/O: 1ch input / 1ch output
### INTERFACES & STORAGE
16. Network: DC12V / PoE (802.3af)
17. SD Card Slot: Supports onboard storage
18. Reset function included
### BUILD & ENVIRONMENT
19. Weather Rating: IP66
20. Operating Environment: Outdoor-rated
