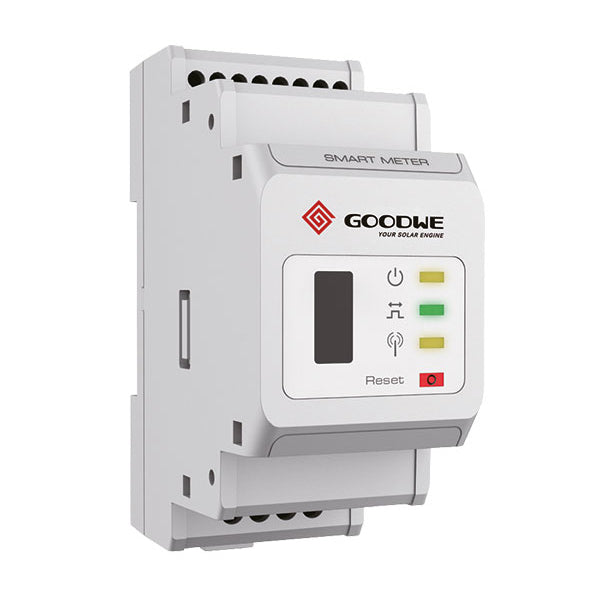

Smart Meter GM1000 GOODWE 16mm 120A

Key Specifications

Electrical Input

•
  Single-phase application

•
  Voltage range: ~110 V to 240 V AC

•
  Current range: 0.48 A up to 120 A

•
  Current transformer opening: 16 mm


Measurements & Accuracy

•
  Measures voltage, current, power, reactive power, power factor, and frequency

•
  Calculates active and reactive energy

•
  Accuracy: Class 1 for voltage, current, and active energy; Class 2 for reactive energy


Communication

•
  RS485 interface using Modbus protocol for integration with inverters and monitoring systems


Physical & Installation

•
  Compact DIN-rail mountable unit

•
  Power consumption: < 3 W

•
  Protection rating: IP20 (indoor use)

•
  Operating temperature: −25 °C to +60 °C

•
  Includes 16 mm current transformer for conductor insertion


Applications

•
  Real-time monitoring of energy consumption and PV production

•
  Export control to limit surplus energy fed into the grid

•
  Load management and self-consumption optimization

•
  Works with inverter logic and energy monitoring systems


Compatibility

•
  Designed for GoodWe single-phase on-grid and hybrid inverters

•
  Requires inverter or monitoring system for operation
