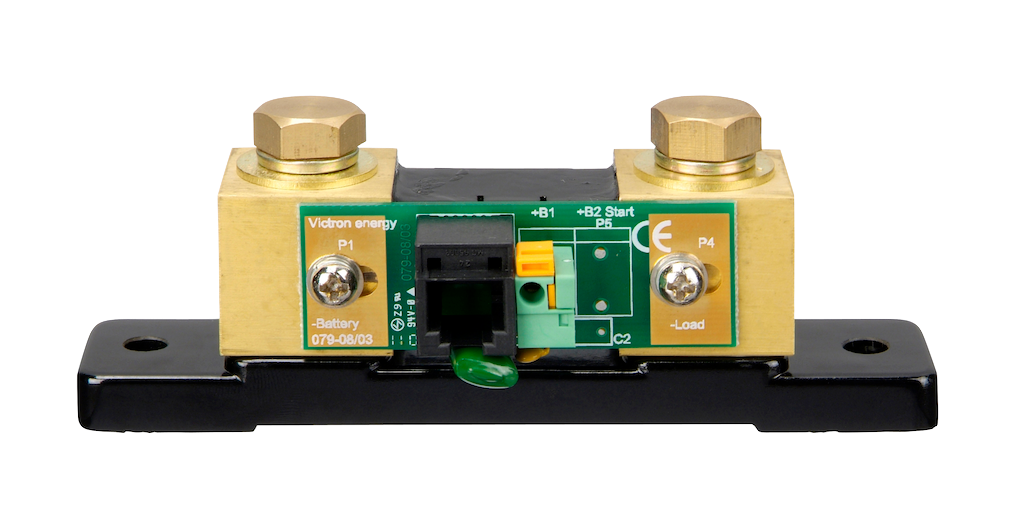

Shunt 500A/50mV 45 x 28 x 120
Shunt 500A/50mV 45 x 28 x 120
A 500A / 50mV shunt is a precision current-sensing resistor used to measure high DC currents.
This model (45 × 28 × 120 mm) is designed to carry up to 500 amperes, producing a small proportional voltage drop of 50 millivolts at full load. It is typically installed in series with a load, and a voltmeter or meter display reads the voltage drop to calculate current accurately.
Couldn't load pickup availability
50 in stock
View full details
More Information
Key Features
High current capacity: Measures up to 500A DC continuously
Standard output: 50mV voltage drop at full-scale current
High accuracy: Designed for precise current measurement in DC systems
Low resistance design: Minimal power loss and heat generation
Durable construction: Typically made from manganin or similar alloy for stability
