PV-GROUNDING CLIP WITH CLENERGY LOGO

What It Is

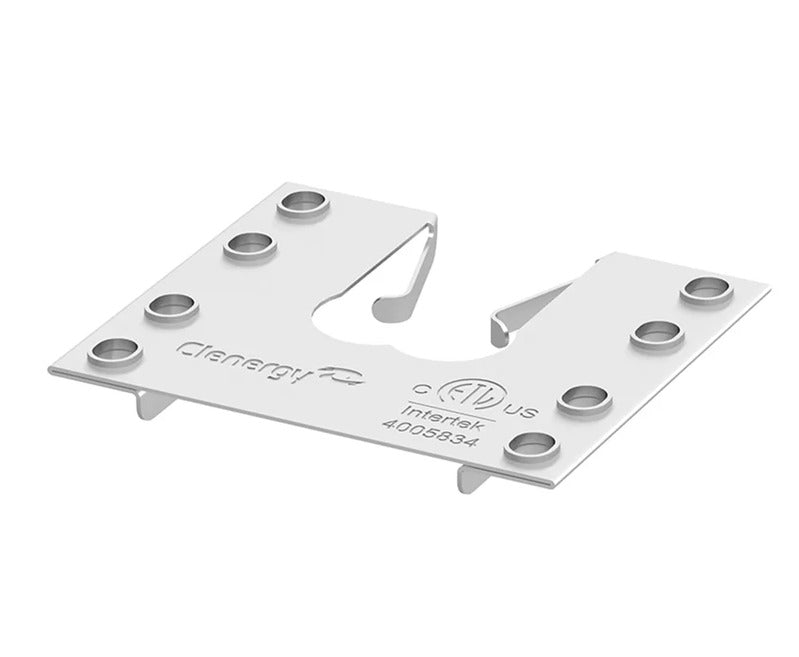

The PV‑ezRack Grounding Clip (with Clenergy logo) — Part No. EZ‑GC‑ST — is a metal clip used to provide a grounding/earthing point between the solar panel frame or rail and the overall PV‑ezRack mounting structure. It ensures electrical continuity and helps meet grounding/earthing requirements in solar installations. Clenergy

🧰 Key Features

• Part Number: EZ‑GC‑ST — Grounding Clip with Clenergy Logo. Clenergy

• Purpose: Provides a bonding/earthing point between the PV rack and the ground/earthing conductor in a solar system. Clenergy

• Fixing Method: Generally fixed under a clamp or rail channel to make electrical contact. Clenergy

• Material: SUS304 stainless steel — corrosion‑resistant for outdoor use. Clenergy

• Dimensions: ~34 mm × 30 mm × 3.7 mm. Clenergy

• Weight: ~0.003 kg (very lightweight). Clenergy

• Color: Silver metal finish with Clenergy logo visible on the piece (or packaging). Clenergy

• Application: Compatible with many PV‑ezRack rails (e.g., ECO‑Rail, T‑Rail, SolarTerrace girder, etc.) and mounted where grounding/bonding is required. Clenergy

• Standard Compliance: Designed to integrate with Clenergy’s grounding/earthing system for PV installations per structural and safety standards. Clenergy

⚡ Why It Matters

✔ Helps bond the mounting structure to earth, improving electrical safety and minimizing fault current risks. Eco-Business
✔ Works with Clenergy’s PV‑ezRack system (SolarRoof, SolarTerrace, ground‑mount systems). Clenergy
✔ Lightweight, corrosion‑resistant, ideal for long‑term outdoor exposure. Clenergy

🛠 Typical Use & Installation

1. Position the grounding clip under a rail clamp or at a designated grounding point on the rail or panel frame. Clenergy

2. Secure using the clamp hardware (e.g., under the same bolt that attaches a mid/end clamp or rail clamp). Clenergy

3. Connect your grounding conductor (e.g., copper earth wire) under the clip so that electrical continuity to earth is established.

4. This bonds the PV module frames and rails together to the grounding system of the PV array.
