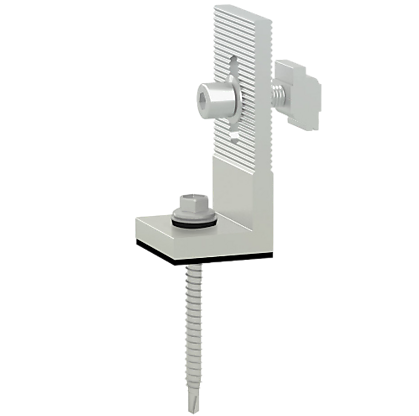

PV-ezRACK SOLAR ROOF TIN INTERFACE

Specifications

• Product Type: Tin Roof Interface for PV mounting system (SolarRoof / PV-ezRack) Clenergy+1

• Typical Models:

  • ER-I-05 / ER-I-05/BA – Standard tin interface (with screw & Z-module) Clenergy+1

  • ER-I-25 – Tin interface with curved base for corrugated roofs Clenergy Solar Racking

• Roof Type: Corrugated or trim tin roofs (metal sheet) Clenergy

• Purlin Compatibility: Metal OR timber purlins (supports both) Clenergy

• Material – Body: AL6005-T5 anodised aluminium for strength and corrosion resistance Clenergy

• Hardware: SUS304 stainless steel washers/nuts, Buildex self-drilling screws (e.g., 14-11 × 70 mm) Clenergy

• Seal: Pre-fitted EPDM rubber pad (∼2 mm) to help seal roof penetration Clenergy

• Finish/Color: Black anodised (standard in black SolarRoof range) Clenergy

• Clearance/Size: ~40 × 38 × 84 mm (small compact bracket) Clenergy

• Standards: Tested per wind/snow codes such as AS/NZS 1170.2 Clenergy

⭐ Key Features

✔️ Designed for Metal/Tin Roof Solar Panels

• Provides secure anchoring point for rails on tin roofs in residential & commercial solar PV installations. Clenergy

✔️ Robust Corrosion-Resistant Construction

• Anodised aluminium body + stainless steel fixings handle harsh outdoor conditions. Clenergy

✔️ Weather Sealing Included

• Pre-installed EPDM rubber pad helps reduce leaks at fixings. Clenergy

✔️ Flexible Installation

• Works on metal or timber purlins, allowing versatile attachment to various roof structures. Clenergy

✔️ Compact & Low Profile

• Small footprint reduces visual impact and material waste. Clenergy

✔️ Part of Complete SolarRoof System

• Interfaces integrate with Clenergy ECO rails, Z-modules, clamps, and accessories for complete PV mounting. Clenergy Solar Racking
