PV EZRACK SOLAR ROOF SPLICE FOR MATRIX RAIL

What It Is

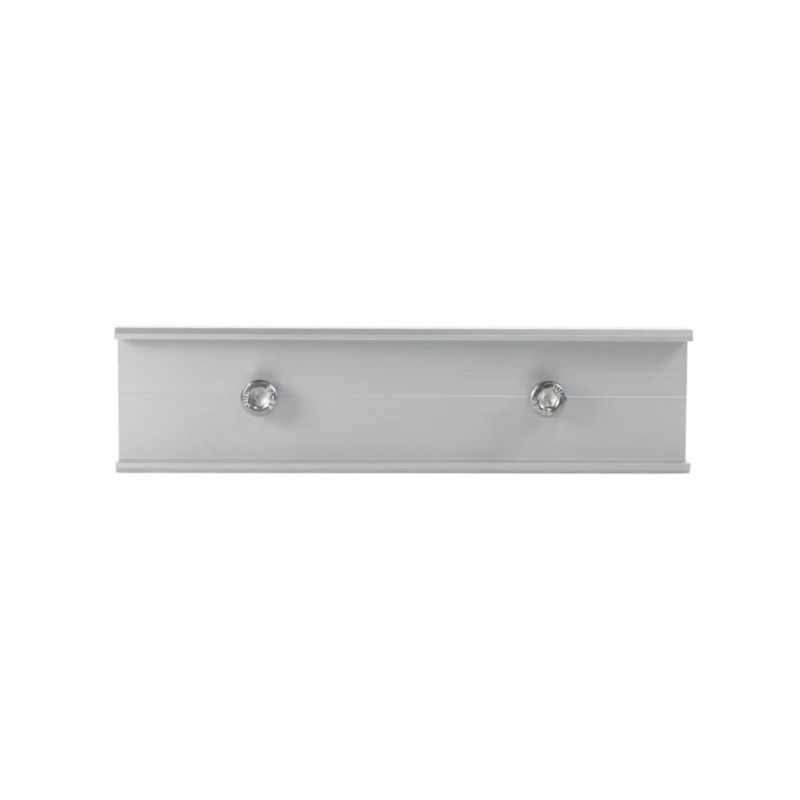

A PV‑ezRack Splice for Matrix (MT) Rail (part number ER‑SP‑MT) is a rail joiner/splice plate designed to connect two MT‑type rails in Clenergy’s PV‑ezRack SolarRoof™ or SolarMatrix™ mounting systems. It enables longer continuous rail runs without cutting, keeping alignment, structure and grounding continuity. MMEM Media

🔧 Key Features

• Purpose: Connect two MT/Matrix rails securely to form a continuous structural rail. MMEM Media

• Part Number: ER‑SP‑MT (Splice for MT rail). MMEM Media

• Material: AL6005‑T5 aluminium alloy body — strong, lightweight, corrosion resistant. MMEM Media

• Fasteners: SUS304 stainless steel bolts & hardware included for secure fastening. MMEM Media

• Finish: Naturally anodized aluminium (silver) — corrosion resistant with long outdoor life. MMEM Media

• Design: Typically a splice plate about ~200 mm long that slides inside or overlaps adjacent rail ends, then screws tighten to lock them together. Manuals+

• Compatibility: Specifically sized for the MT / Matrix rail profile in the PV‑ezRack system (often used where heavier or wider rails are needed). MMEM Media

• Use Case: Used on solar roof and structural installations where rail lengths need to be extended — for pitched, tile, or metal roofs. MMEM Media

🛠 How It Works

1. Slide the splice half‑way into the internal channel of one MT/Matrix rail.

2. Insert and tighten the first bolt to secure it.

3. Slide the second rail end over the remaining splice plate.

4. Tighten the second bolt to lock both rail ends together as one continuous member.

5. This also provides electrical continuity (useful for grounding if specified). Manuals+

(This installation method is typical for rail splices in the PV‑ezRack system, including MT rail splices.) Manuals+
