PV-EZ RACK SOLARROOF TILT LEGS ADUSTABLE

• Product Series: Clenergy PV-ezRack® SolarRoof™ Adjustable Tilt Legs Clenergy

• Purpose: Provides adjustable panel tilt on tin/metal roofs — improves sun exposure and energy yield. Clenergy

• Tilt Angle Ranges:

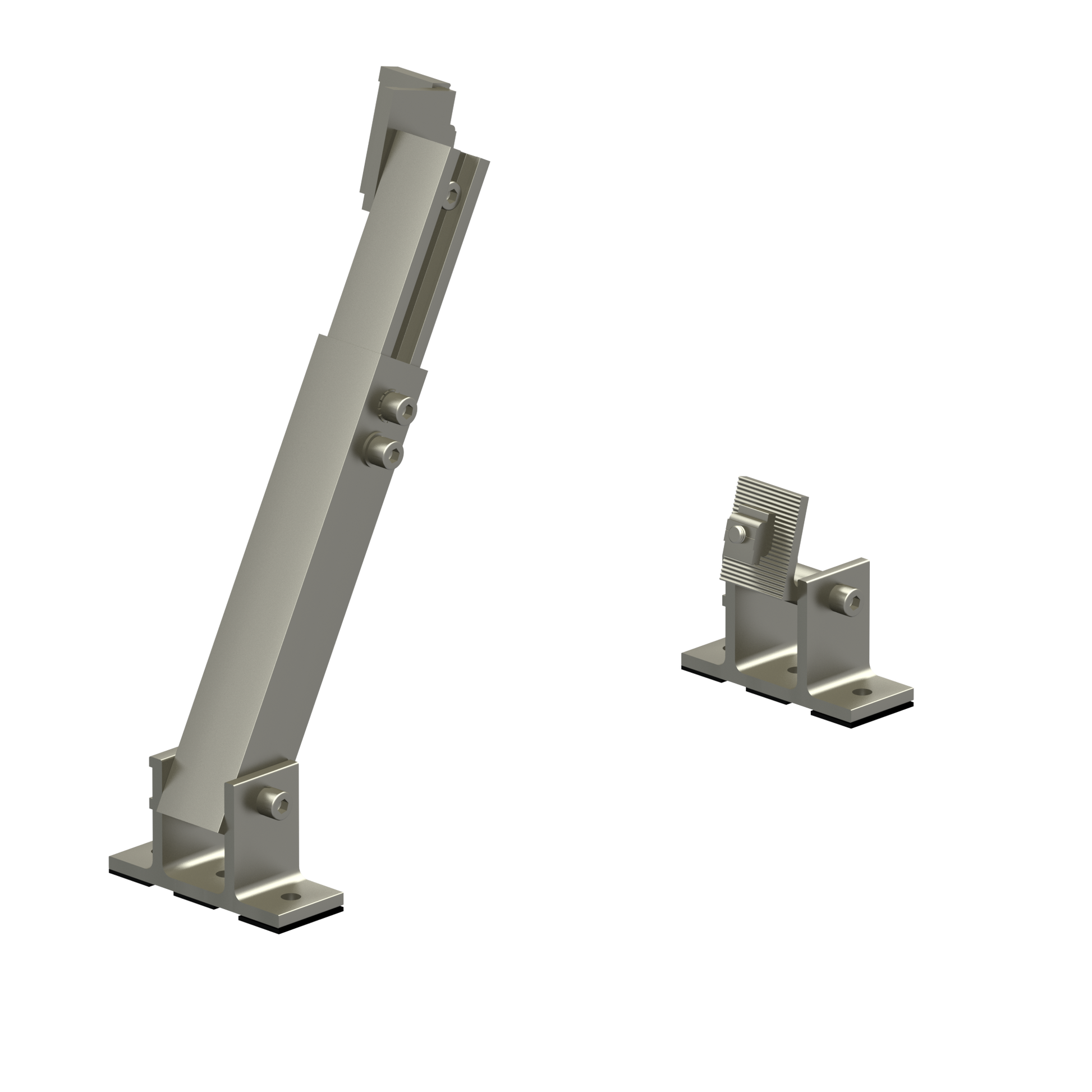

  • ~10° to 15° (ER-TL-10/15)

  • ~15° to 30° (ER-TL-15/30)

  • ~30° to 60° (ER-TL-30/60) Clenergy

• Material: Structural anodised aluminium AL6005-T5 (strong & corrosion-resistant) Clenergy

• Fasteners: SUS304 stainless steel hardware included Clenergy

• Weight: ~1.06 kg for 10–15° version; ~1.28 kg for 15–30° (non-preassembled) Clenergy

• Finish: Silver anodised (available black anodised “BA” versions too) Clenergy

• Compatible System: Works with PV-ezRack SolarRoof rails and interfaces (penetrative or non-penetrative). Clenergy

• Roof Type: Tin/metal roofs for residential solar installations. Clenergy

• Installation: Attaches between roof interface bracket and rail — adjustable rear leg positions fit various purlin spacings. Clenergy

⭐ Key Features

• Adjustable Tilt: Allows panels to be tilted between ~10° and ~60° depending on leg model — helps optimize solar energy capture. Clenergy

• Universal Fit: Designed for use with most PV-ezRack SolarRoof mounting setups on tin/metal roofs. Clenergy

• Durable Materials: Anodised aluminium + stainless steel hardware for long-term outdoor use. Clenergy

• Quick Installation: Uses Clenergy’s modular design (Z-modules and standard hardware) for faster assembly. Clenergy

• Multiple Angle Options: Choose tilt range based on roof pitch and solar orientation needs
