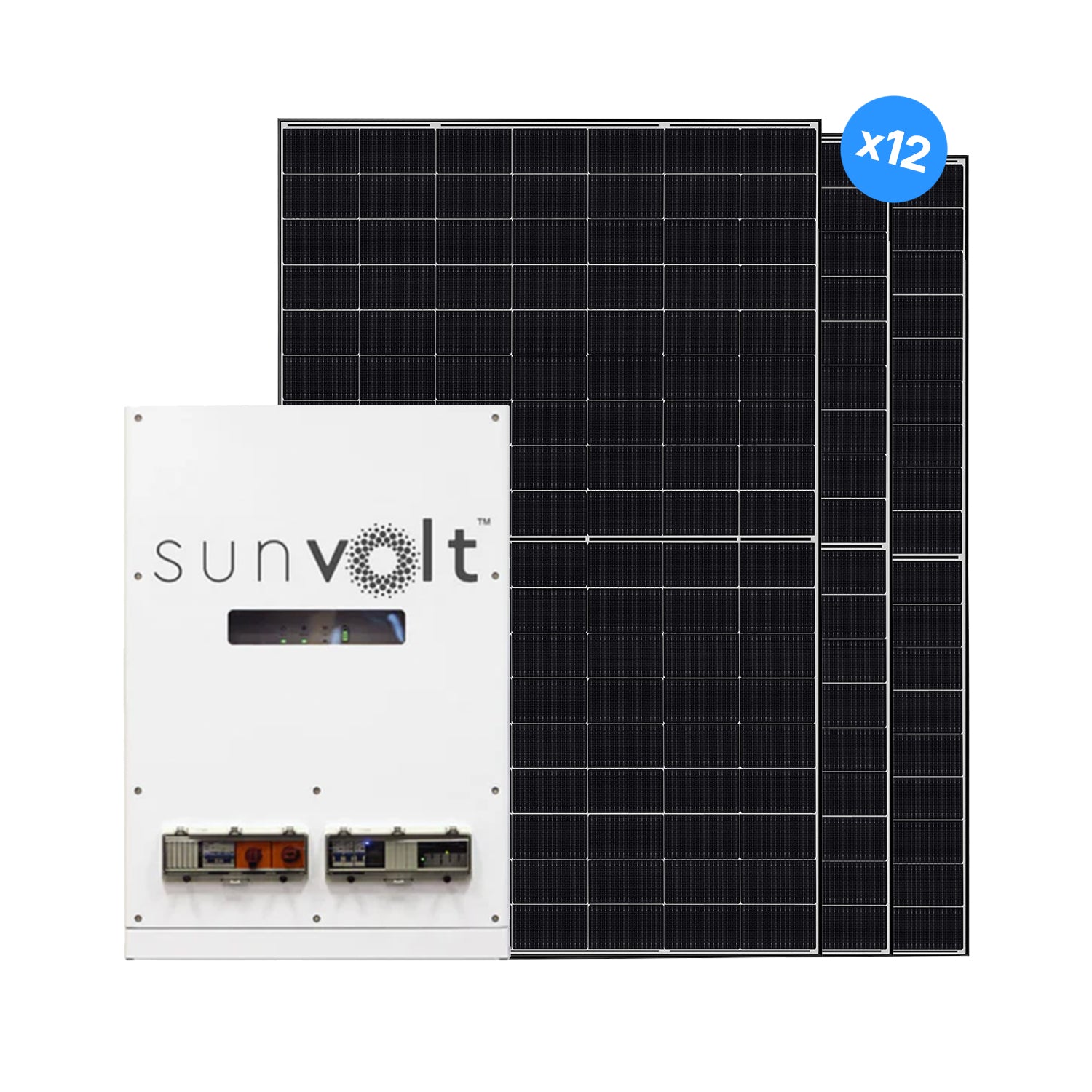

Panasonic 6kW Solar Kitset (Sunvolt Inverter + 12 Anchor Solar Panels)
Panasonic 6kW Solar Kitset (Sunvolt Inverter + 12 Anchor Solar Panels)
Take control of your energy bills with the ultimate Panasonic 6kW Solar Kitset, featuring a massive array of 12 premium Panasonic Anchor solar panels. This comprehensive bundle pairs twelve high-efficiency, all-black N-Type TOPCon panels with the intelligent Sunvolt inverter system, designed for maximum performance, flexibility, and safety. Monitor your energy flow anytime, anywhere with the Sunvolt ARIES web app.
What's included:
- 12 x Panasonic Anchor Solar Panels (N-Type TOPCon, 490W-510W)
- 1 x Panasonic Sunvolt Inverter
-
Smart App Control: Monitor your system remotely via the Sunvolt ARIES app.
Offer Valid Until: 5 PM, 13th June (Field Days Special)
Couldn't load pickup availability
100 in stock
View full details
More Information
Key Features

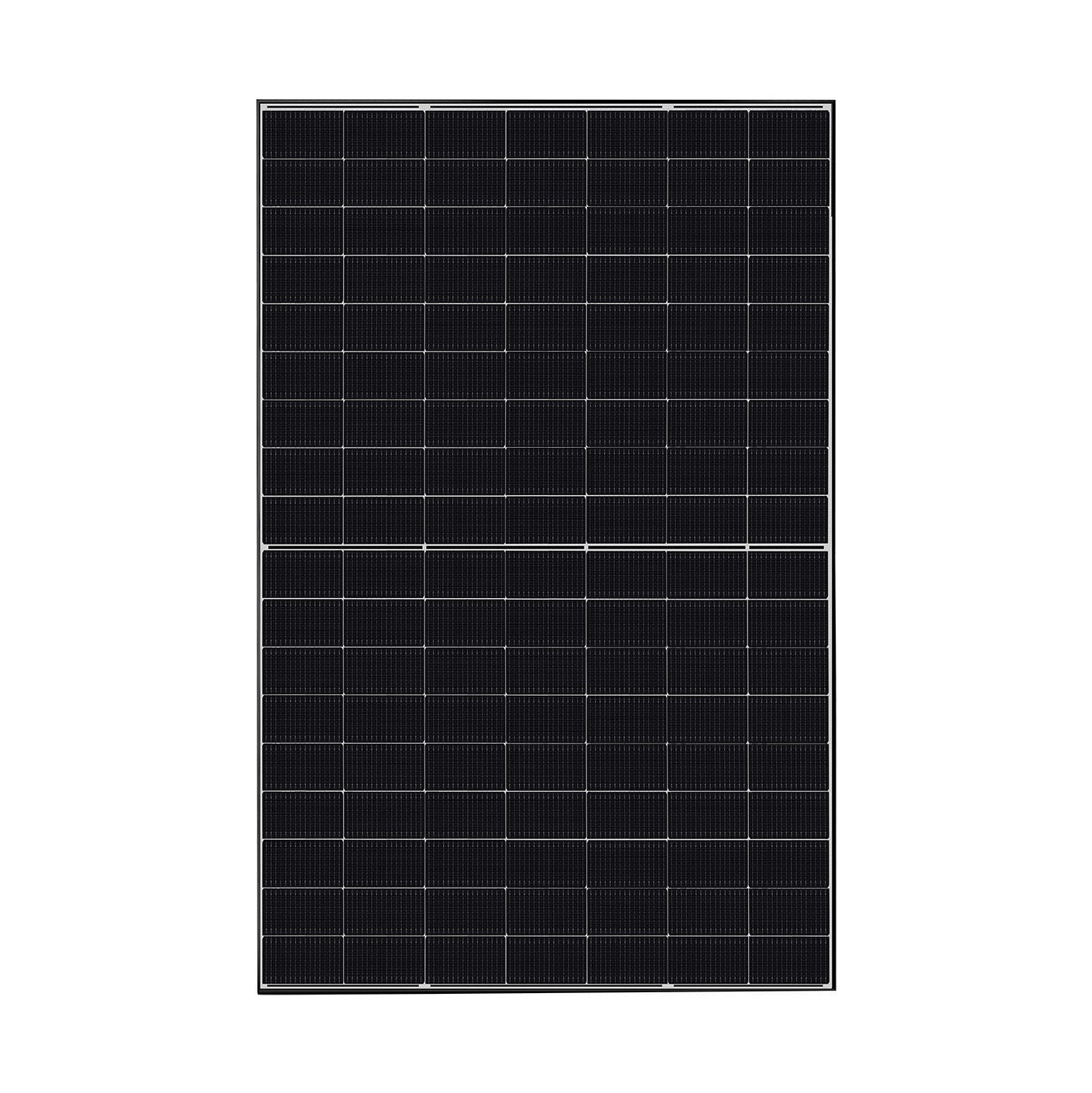

Product Specifications: 12x Panasonic Anchor Solar Panels
Experience maximum efficiency (up to 22.9%) and stunning aesthetics with these 12 all-black, bifacial dual-glass modules. Built to withstand harsh environments with zero LID loss and extreme weather load ratings.
FeatureSpecificationBrand / ManufacturerAnchor / PanasonicModel CodeAE10TDXXXUHC16B6Nominal Power (Pmax)490W - 510W per panelEfficiency22.9% Maximum EfficiencyCell TypeN-Type TOPCon (108 Half-Cells), 182mm x 210mmModule TypeBifacial, Dual Glass (80% +/-5% Bifaciality Factor)AppearanceAll BlackDimensions / Weight1961 x 1134 x 30 mm / 23.5 kg per panelGlass / Connector1.6 mm semi-tempered glass (Front & Rear) / MC4-OriginalJunction BoxIP68 Rated, 3 SplitSystem Voltage1500V DCTemperature Coeff. (Pmax)−0.29%/°CLoad Rating5400Pa Snow Load, 2400Pa Wind LoadStandardsIEC 61215, IEC 61730, IEC 61701, IEC 62716
Panel Warranties:
- 25-Year Product Warranty
- 30-Year Performance Warranty (1% First Year Degradation, 0.4% Annual Degradation)

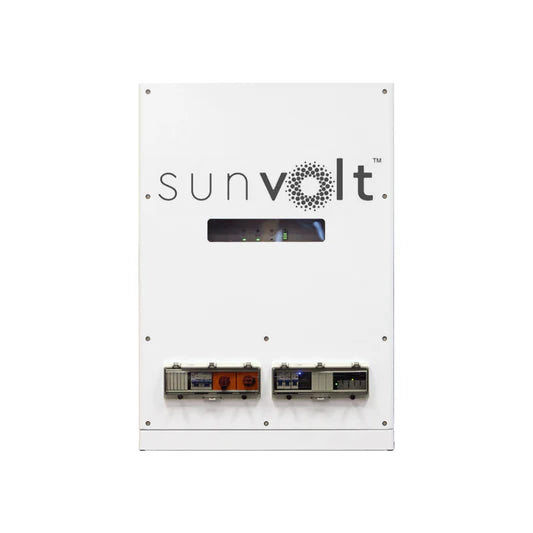

Inverter & Battery System Details
Panasonic's outdoor-ready residential energy storage solution ensures seamless backup and intelligent energy management for your 12-panel array.
- Battery Technology: Safe and long-lasting LFP (LiFePO4).
- Scalable Capacity: Expandable from 5.37kWh up to 21.48kWh.
- Installation-Friendly: Pre-wired with integrated isolators; compatible with wall or ground mounting.
- Built Tough: IP55 battery enclosure, ideal for both indoor and outdoor use.
- Advanced Protections: Includes AFCI, surge protection, reverse polarity, and anti-islanding.
- Warranty: Backed by a 10-year system warranty.
