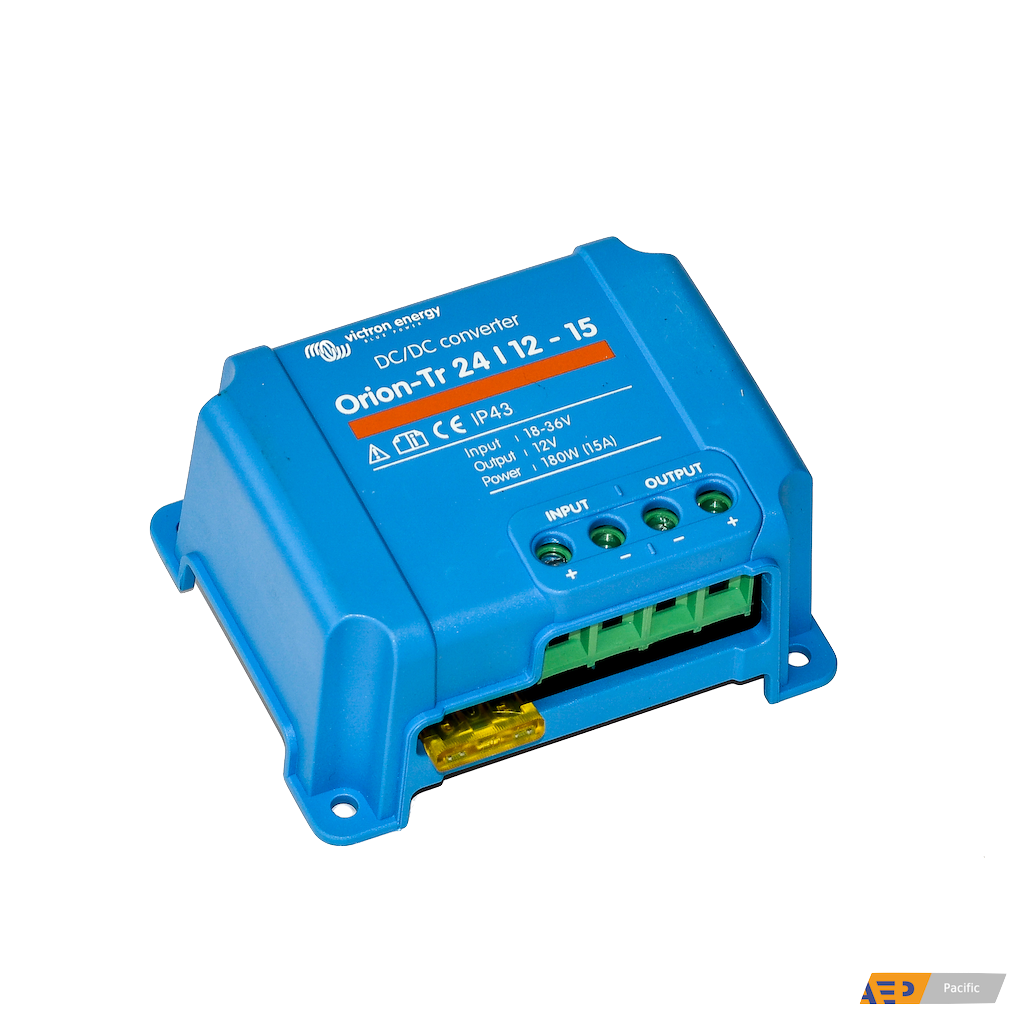

Orion-Tr non-isolated 24/12-15 (180W) Converter
Orion-Tr non-isolated 24/12-15 (180W) Converter
The Victron Orion-Tr non-isolated 24/12-15 (180W) is a compact DC-DC step-down converter designed to efficiently convert a 24V DC system into a stable 12V output.
It delivers up to 15A continuous (180W) with high efficiency (up to ~95–97%), making it suitable for running 12V loads such as communication equipment, electronics, lighting, and auxiliary systems from a 24V battery bank.
Couldn't load pickup availability
50 in stock
View full details
More Information
Key Features
24V to 12V step-down conversion
Provides a stable 12.5V output from a 24V DC system, suitable for 12V equipment in vehicles, marine, or industrial setups.
High power output (180W / 15A continuous)
Delivers up to 15A continuously, with short peak capability around 20A for transient loads.
High efficiency (up to ~97%)
Uses synchronous rectification to minimize energy loss and heat generation.
Wide input voltage range (18–35V DC)
Works reliably even with fluctuating 24V battery systems.
