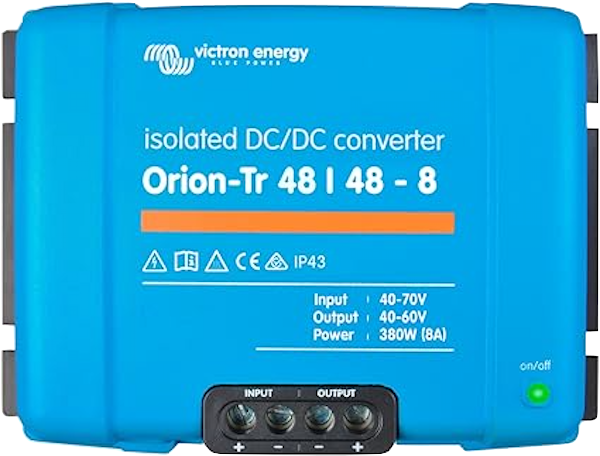

Orion-Tr Isolated 48/48-8A (380W)
Orion-Tr Isolated 48/48-8A (380W)
The Orion-Tr Isolated 48/48-8A (380W) is a compact, galvanically isolated DC-DC converter designed to regulate and stabilize 48V DC power systems.
It accepts a 40–70V DC input and provides a regulated 48V output (up to 8A / 380W) with high efficiency and built-in protections. The unit features galvanic isolation (≈200V) between input, output, and chassis, making it suitable for sensitive electronics and systems requiring electrical separation. It also includes remote on/off control, short-circuit protection, and can be paralleled for higher output current.
Couldn't load pickup availability
50 in stock
View full details
More Information
Key Features
Galvanic isolation (200V DC) between input, output, and chassis for safety and noise reduction
Stable 48V regulated output even with varying input voltage (40–70V range)
High efficiency (~89%) for reduced power loss and heat generation
8A continuous output / 380W–430W power handling depending on temperature conditions
