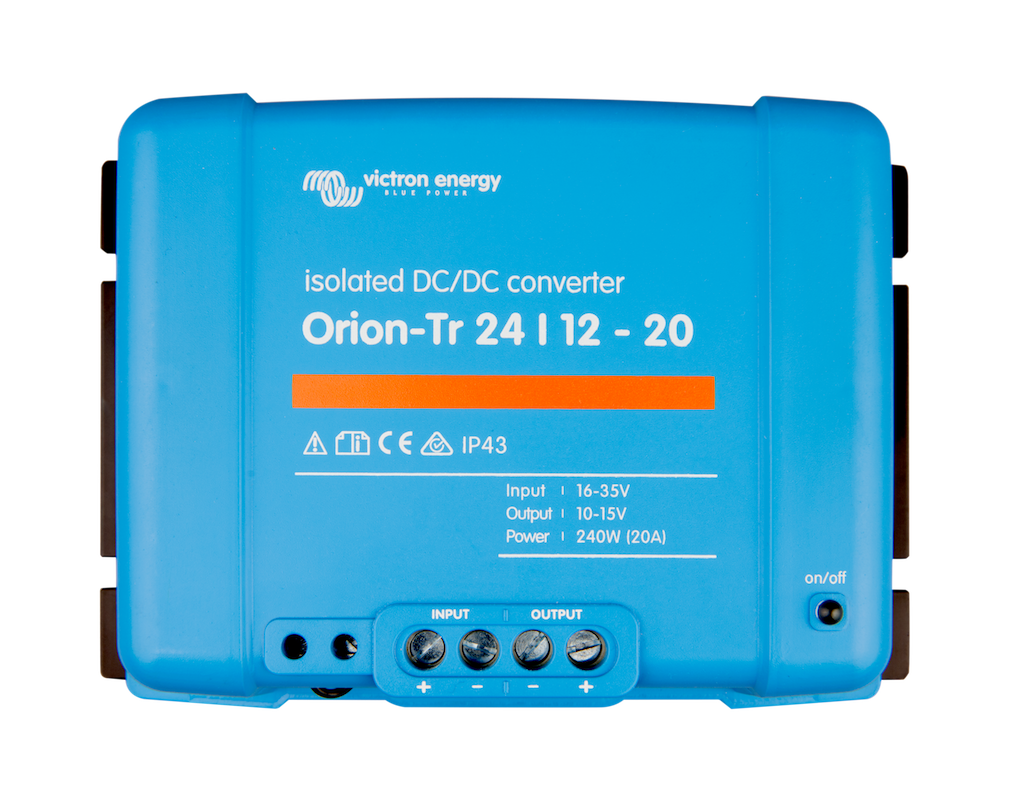

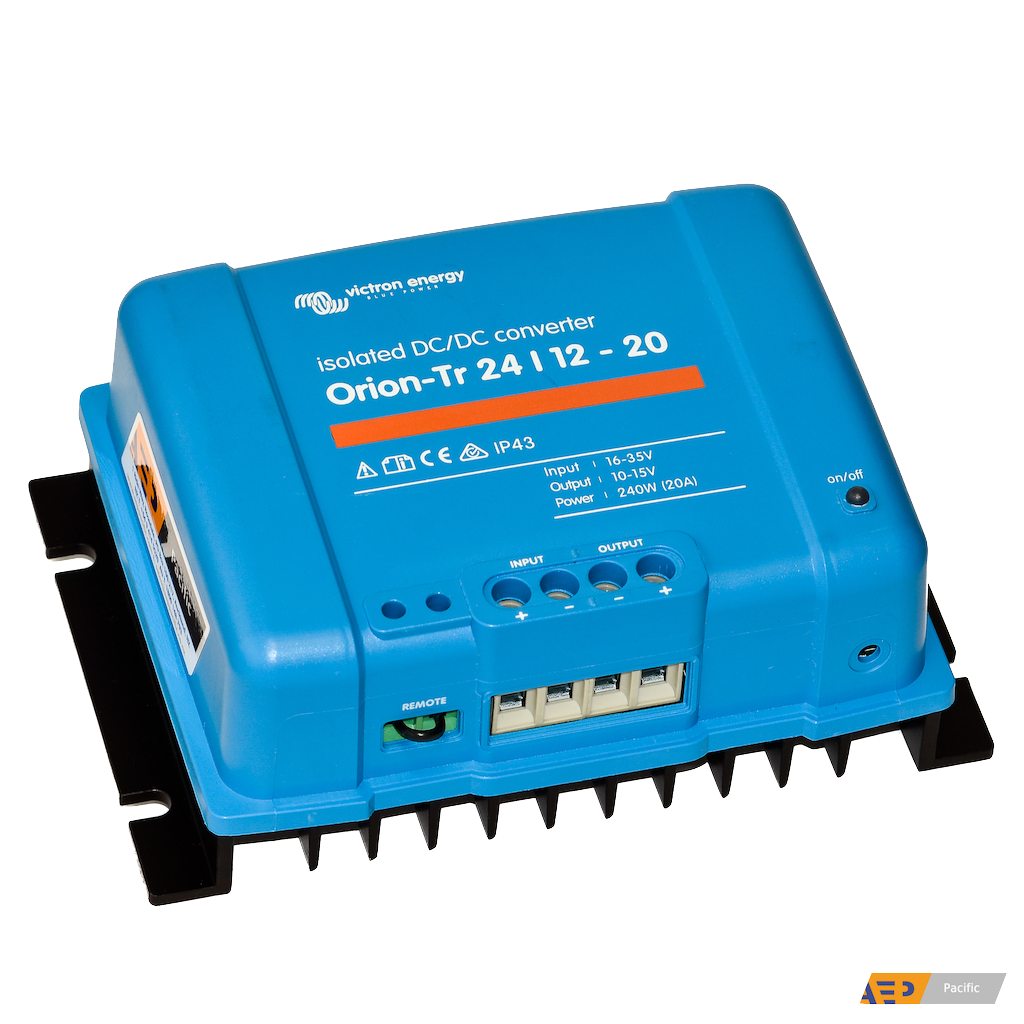

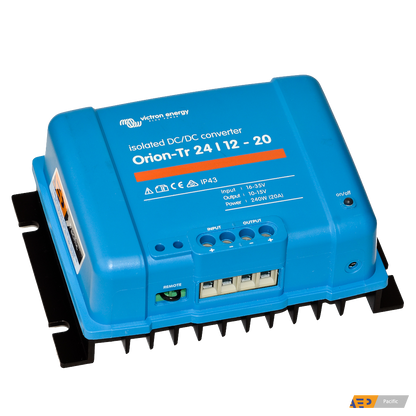

Orion-Tr Isolated 24/12-20 (240W) Converter
Orion-Tr Isolated 24/12-20 (240W) Converter
A compact galvanically isolated DC-DC converter that steps down 24V DC to 12V DC with a regulated output of 12.2V and up to 20A (240W continuous). It features adjustable output voltage (10–15V), remote on/off control, and high efficiency (~88–95%). The unit provides electrical isolation between input, output, and chassis (200V DC) for improved safety and noise reduction, making it suitable for automotive, marine, and industrial 24V-to-12V power systems. It is also short-circuit proof, IP43 protected, and parallelable for higher power needs.
Couldn't load pickup availability
50 in stock
View full details
More Information
Key Features
Galvanic isolation (200V DC) between input, output, and chassis for electrical safety and noise reduction
24V to 12V step-down conversion with regulated output (12.2V nominal)
20A continuous output current / 240W power capability (higher peak up to ~25A)
Wide input voltage range (16–35V) suitable for vehicle and industrial 24V systems
