Universal Infrared Safety Beam Photocell Detector (20m Range)
Universal Infrared Safety Beam Photocell Detector (20m Range)

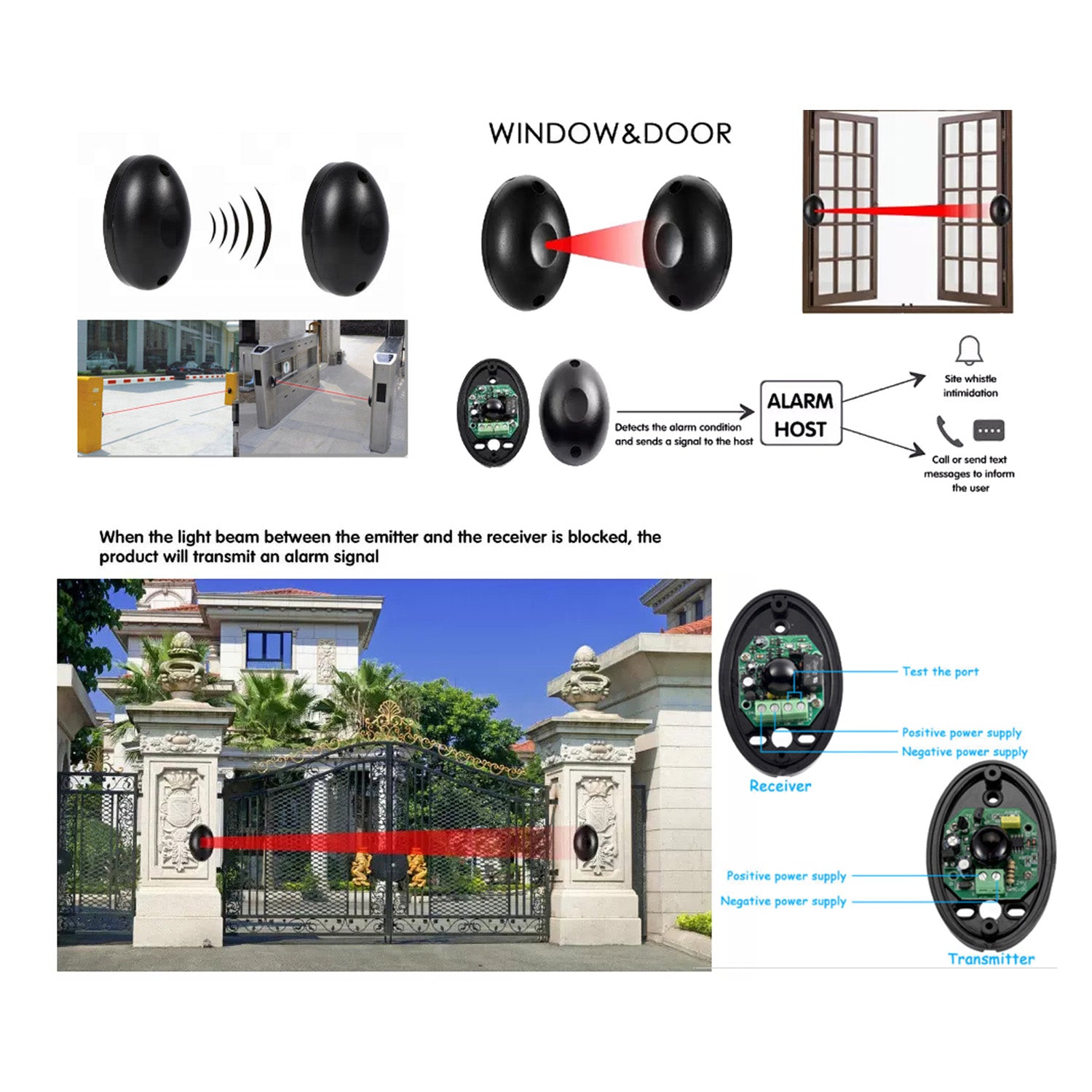

Ensure maximum safety and precision for your automated gates and garage doors with the FD Universal Infrared Safety Beam. Built to endure the toughest outdoor environments, this advanced photocell sensor features a fully sealed housing and smart anti-glare technology to seamlessly block interference from harsh sunlight or passing car headlights. Compatible with major systems like DOORHAN, DITEC, and ATA, it delivers lightning-fast, ultra-reliable detection to keep your property secure and prevent closing-cycle accidents.
Couldn't load pickup availability
100 in stock
View full details
More Information
Key Features
All-Weather Reliability: Features a completely sealed structure designed to resist rain, dust, fog, and insects. A built-in AGC circuit automatically boosts the sensor's sensitivity during bad weather for uninterrupted performance.
Advanced Glare Filtration: An automatic filtration system blocks up to 50,000 LUX of light interference, effectively preventing false triggers from direct sunlight or bright vehicle lights.
Lightning-Fast Detection: Driven by high-power infrared transmitters and a unique digital filter circuit, it detects beam interruptions in just 30 milliseconds.
Universal Compatibility: The C-type relay output (NC/NO) and adjustable beam interruption period make it incredibly flexible and easy to integrate with almost any gate or garage door controller.
Heavy-Duty Protection: Equipped with an anti-lightning circuit design, a professional anti-interference optical cover, and a built-in rain shield to maximize outdoor lifespan.
Product Specifications
Working Voltage: DC 12-24V
Operating Range: 20m (Outdoor guard distance) / 30m (Indoor alert distance)
Sensing Speed: 30ms
Alarm Output: NC & NO contact capacity (AV / DC 30V / 0.5mA)
Housing Material: Durable Polycarbonate (PC)
Safety & Compliance: CE Certified (Contains zero high-concerned chemicals)
