END CLAMPS SILVER 35MM
END CLAMPS SILVER 35MM

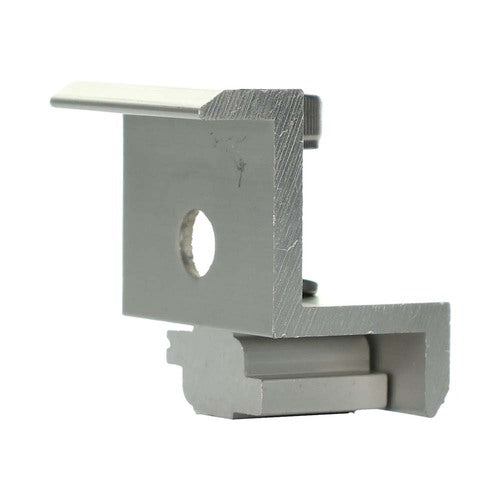

What is this clamp
-
This is a standard “end clamp” used to secure the outer edge of a framed solar PV module (with ~ 35–37 mm frame height) to a rail in a mounting system such as Clenergy’s PV‑ezRack ECO‑Rail or T‑Rail systems. Smiths NZ+1
-
Unlike “inter‑clamps” (for clamping between adjacent panels), an end clamp is used at the start or end of a panel‑row — securing the panel’s free edge. clenergy.com+2clenergy.com+2
🔧 Key Features & Materials
| Feature / Spec |
Detail
|
|---|---|
| Compatible panel frame height |
~35–37 mm modules. Smiths NZ+1
|
| Material – clamp body |
Aluminium alloy AL6005‑T5 — structural grade, corrosion‑resistant. clenergy.com+1
|
| Fasteners / bolts |
Stainless steel (SUS 304) hardware. Smiths NZ+1
|
| Finish / colour |
Silver anodised coating (≥ 10 µm) — for durability + weather resistance. Smiths NZ+1
|
| Weight per clamp |
~ 0.054 kg. clenergy.com+1
|
| Clamping torque (recommended) |
16–20 N·m (for M8 bolt) for secure fastening. clenergy.com+1
|
| Rail compatibility |
Works with Clenergy ECO‑Rail or T‑Rail mounting systems. clenergy.com+1
|
✅ What it’s Good For
-
Securing the edge/end of a solar panel row — ensuring panels are firmly attached to the rail.
-
Use with framed PV modules of about 35 mm frame height (common size), making it a “standard” but very useful clamp for many installations.
-
The silver anodized finish gives a clean aesthetic + good resistance to weather/corrosion, suitable for long‑term rooftop or ground‑mount solar installations.
-
Works well with other PV‑ezRack components (rails, inter‑clamps, Z‑modules, bolts), so part of a complete modular mounting system.
