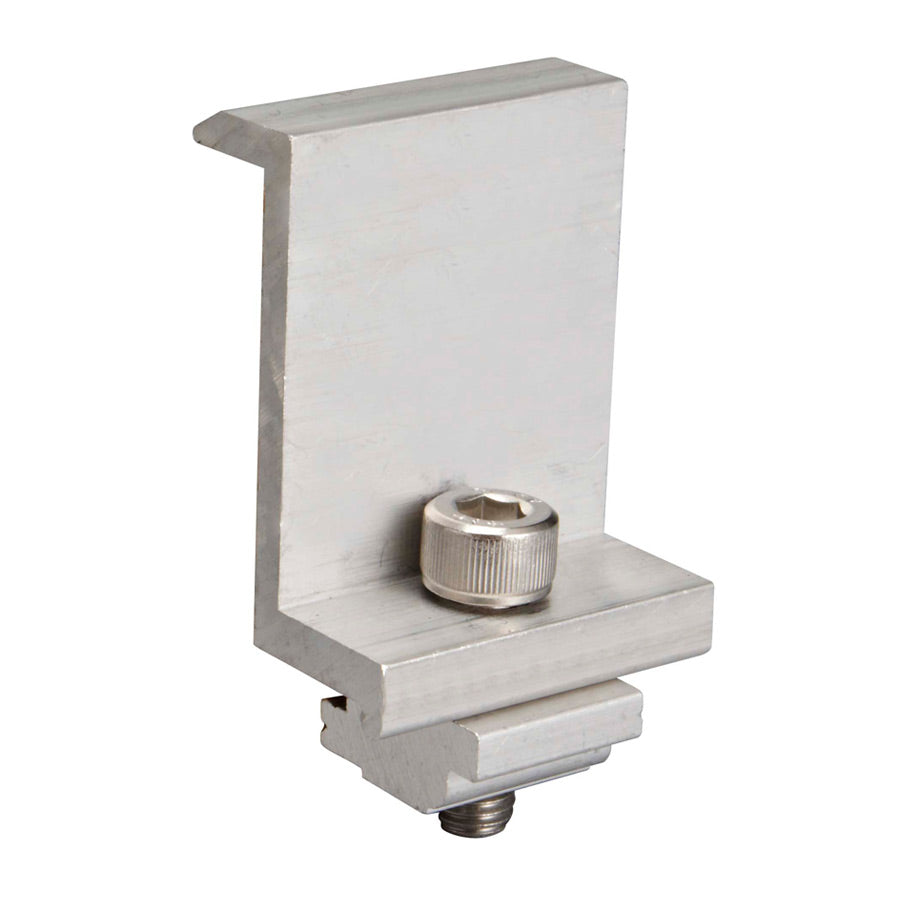

END CLAMP 30MM

📌 Overview

• This is an end‑clamp designed to fix the outer edges of framed solar PV modules (typically 30 mm module‑frame height) to a rail (e.g. ECO‑rail or T‑rail) in the Clenergy PV‑ezRack mounting system. learsmith.com.au+2awm.mmem.com.au+2

• It ensures secure, stable attachment of solar panels — helping prevent shifting, maintain alignment, and ensure long‑term reliability of the installation. clenergy.com+1

🔧 Key Features & Materials

• Frame compatibility: Built for framed PV modules with frame‑height around 30 mm. clenergy.com.cn+1

• Materials: Main body alloy is AL6005‑T5 aluminium (structural, corrosion resistant). Fasteners/bolts are stainless steel (SUS 304). clenergy.com+2awm.mmem.com.au+2

• Finish: Often anodized (silver or optionally black anodized for black‑frame panels) for durability and corrosion protection. Smiths NZ+1

• Pre‑assembled convenience: The clamp comes with the required bolt + module‑attachment (Z‑module or equivalent), so it’s ready to install — reducing labor and part‑count. Smiths NZ+1

📐 Typical Specs (for the 30 mm End Clamp)

🛠 Typical Use & Installation Context

• Used to clamp the edge (end) of a solar PV panel — typically at the beginning or end of a panel‑row — where an end clamp is required (vs. “inter‑clamp” for between two panels).

• Compatible with Clenergy’s ECO‑rail or T‑rail systems (or other rails in PV‑ezRack range) for roof‑mount or ground‑mount solar installations. learsmith.com.au+2clenergy.com.cn+2

• Often chosen when panels have 30 mm (or within supported range) frame‑height; also works with other frame‑heights when using “universal clamp” variants.
