CLENERGY CABLE CLIP PV PANEL HOLDING 2 CABLES

📦 Product Overview

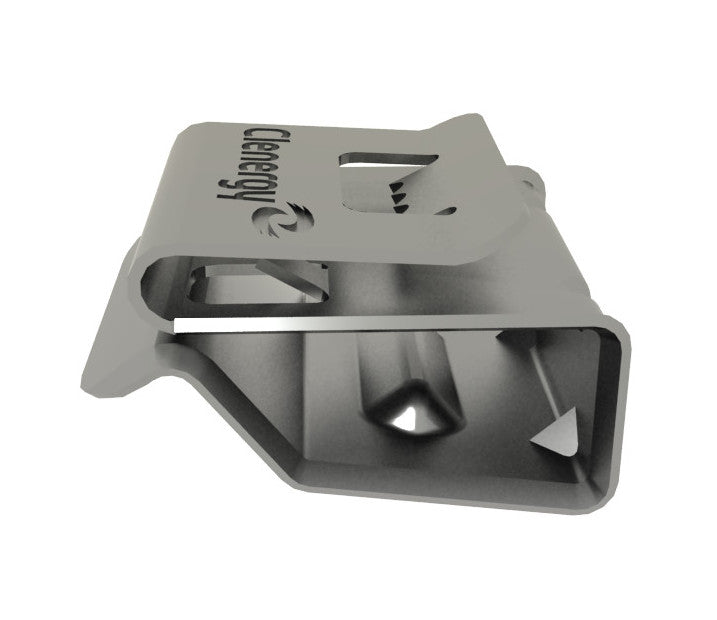

Clenergy PV‑ezRack Universal Cable Clip (Holds 2 Cables)
Part No: EZ‑CC‑PV/2
A cable management clip that clips onto the frame of a solar PV module and neatly holds two cables, keeping them tidy and off the roof surface under the panels. Clenergy

📌 Key Features

• 📍 Designed for: Framed solar PV modules only. Clenergy

• ✂️ Holds up to 2 cables: Keeps DC cable runs tidy & secure. Clenergy

• 📐 Dimensions: ~20.8 × 18.2 × 12 mm. Clenergy

• 📏 PV frame thickness: Fits 1.3 – 2.0 mm thick frames. Clenergy

• 📍 Minimum frame width: ~12 mm. Clenergy

• 🔌 Max cable size: ~10 mm² standard PV cables. Clenergy

• 🛠 Material: SUS304 stainless steel — strong and corrosion‑resistant for outdoor use. Clenergy

• 🎨 Color: Silver (natural stainless look). Clenergy

• ⚙ Weight: ~0.004 kg each. Clenergy

🛠 How It Works

• The clip snaps or clamps onto the edge of a PV panel’s aluminium frame.

• You then run two DC cables (e.g., from panel junction boxes or MC4 leads) through the clip.

• This keeps cables tidy, off the roof surface, and away from panel rail structures, reducing wear and trip hazards while improving the visual neatness of the install. Solamart

📌 Typical Cable Management Use

✔ Keeps cabling off the roof surface under panels. Solamart

✔ Reduces stress on cable jackets and connectors. Solamart

✔ Useful when routing cables to a combiner box or inverter entry point after panel rows. Solamart

✔ Works well instead of zip ties (more secure).
