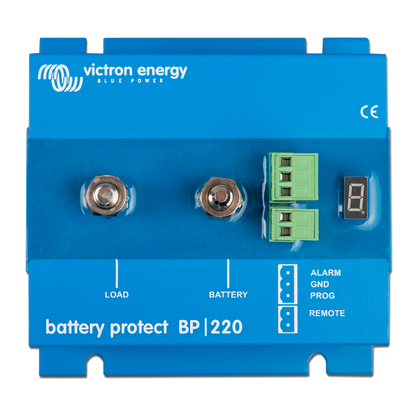

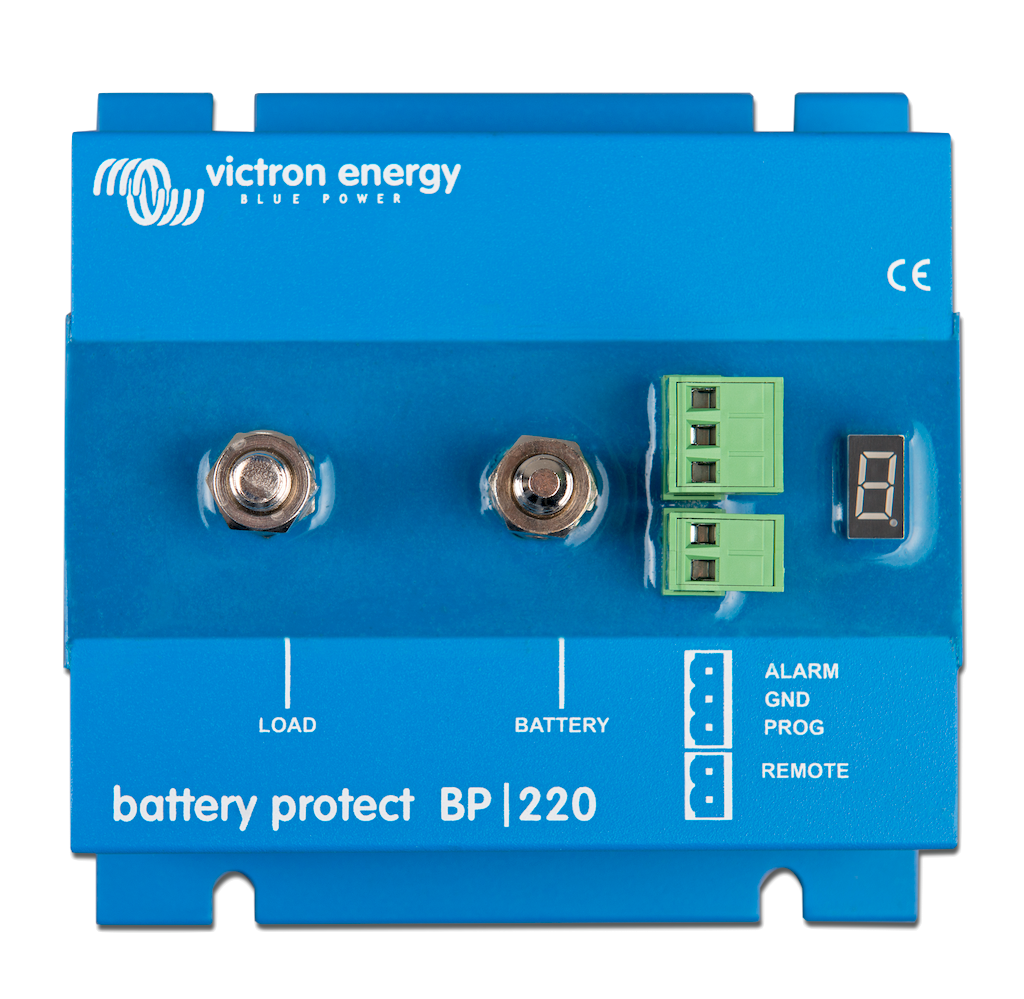

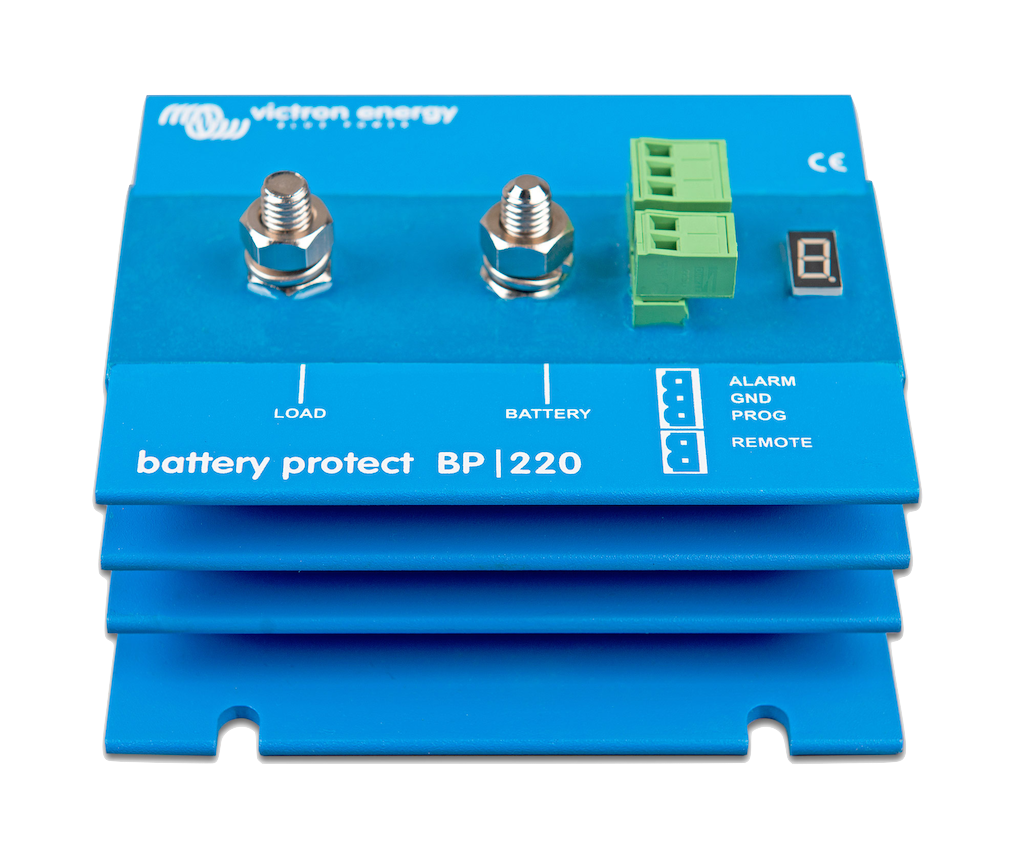

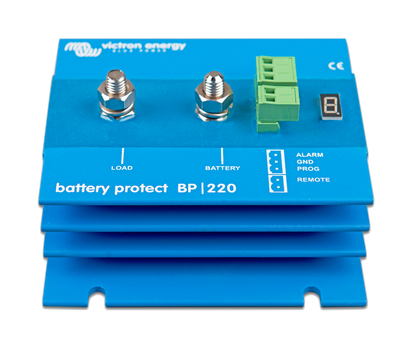

BatteryProtect 12/24V BP-220
BatteryProtect 12/24V BP-220
The Victron BatteryProtect BP-220 is a 12/24V automatic battery protection device designed to safeguard batteries from deep discharge and overvoltage. It disconnects non-essential loads when battery voltage drops too low or becomes too high, helping extend battery life and prevent damage. It supports up to 220A continuous current and automatically detects 12V or 24V systems.
Couldn't load pickup availability
100 in stock
View full details
More Information
Key Features
High current capacity (220A continuous)
Suitable for large DC loads in 12V or 24V systems.
Automatic low-voltage disconnect
Disconnects loads before the battery is deeply discharged, protecting battery life and preventing starting failure.
Over-voltage protection
Cuts off loads if system voltage becomes too high (protects connected equipment).
12/24V auto detection
Automatically detects system voltage—no manual selection needed.
Programmable voltage thresholds
Disconnection and reconnection levels can be set to suit different battery types and applications.
