AC-Transfer Switch Transfer Switch 10kVA - consider Quattro instead 175 x 215 x 120
AC-Transfer Switch Transfer Switch 10kVA - consider Quattro instead 175 x 215 x 120

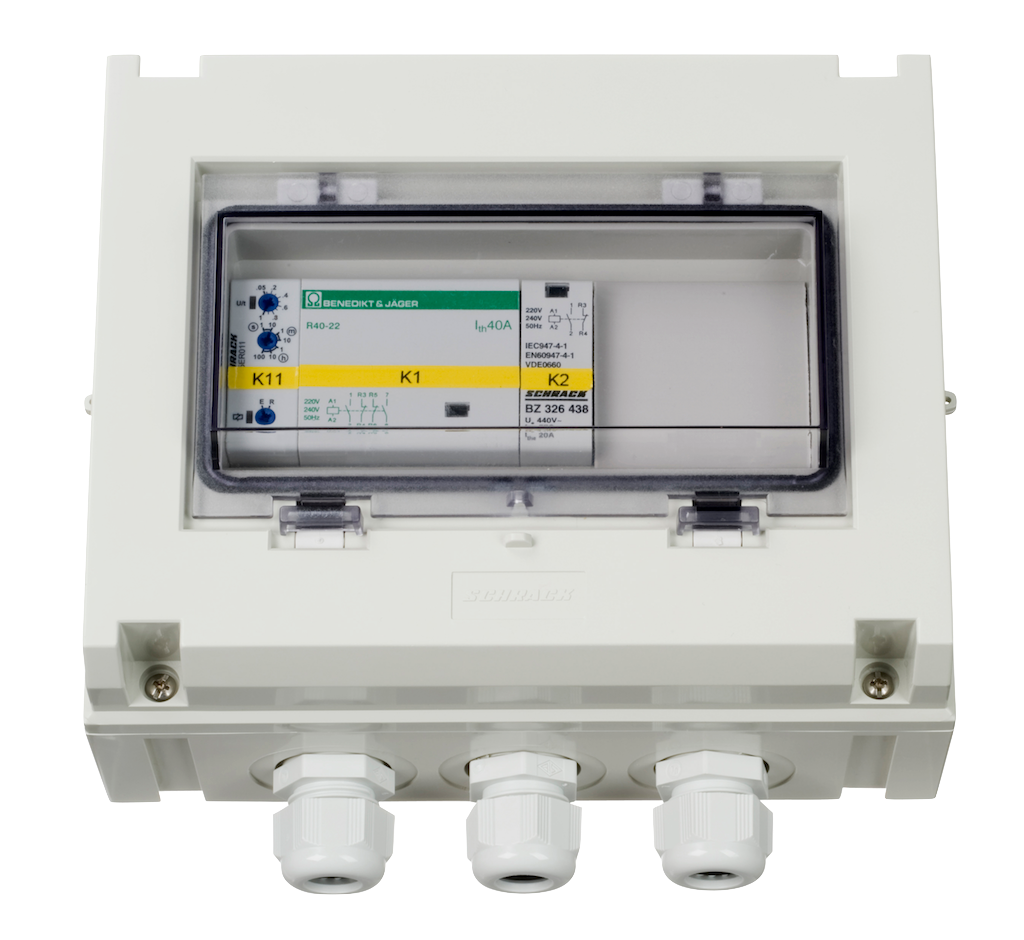

AC transfer switch rated at 10 kVA for automatic switching between two AC power sources. Features 2 inputs and 1 output with seamless changeover (10–20 ms) to ensure uninterrupted supply. Designed for single-phase 200–250 V systems, ideal for backup, off-grid, or marine applications. Compact wall-mount enclosure (175 × 215 × 120 mm). For systems requiring integrated inverter/charger with built-in transfer switching, consider using a Victron Quattro instead.
Couldn't load pickup availability
100 in stock
View full details
More Information
Key Features
Automatic source switching – Seamlessly switches between two AC power sources (e.g. grid, generator, inverter) without manual intervention
Dual input, single output design – 2 AC inputs and 1 output for flexible system integration
Fast transfer time – Typical switching time of ~10–20 ms for minimal power interruption
10 kVA capacity – Suitable for higher-load single-phase applications (200–250 V AC)
Automatic prioritization & protection – Detects unstable voltage/frequency and switches to a stable source, protecting connected loads
