SKU:AE10TDXXXUHC16B6

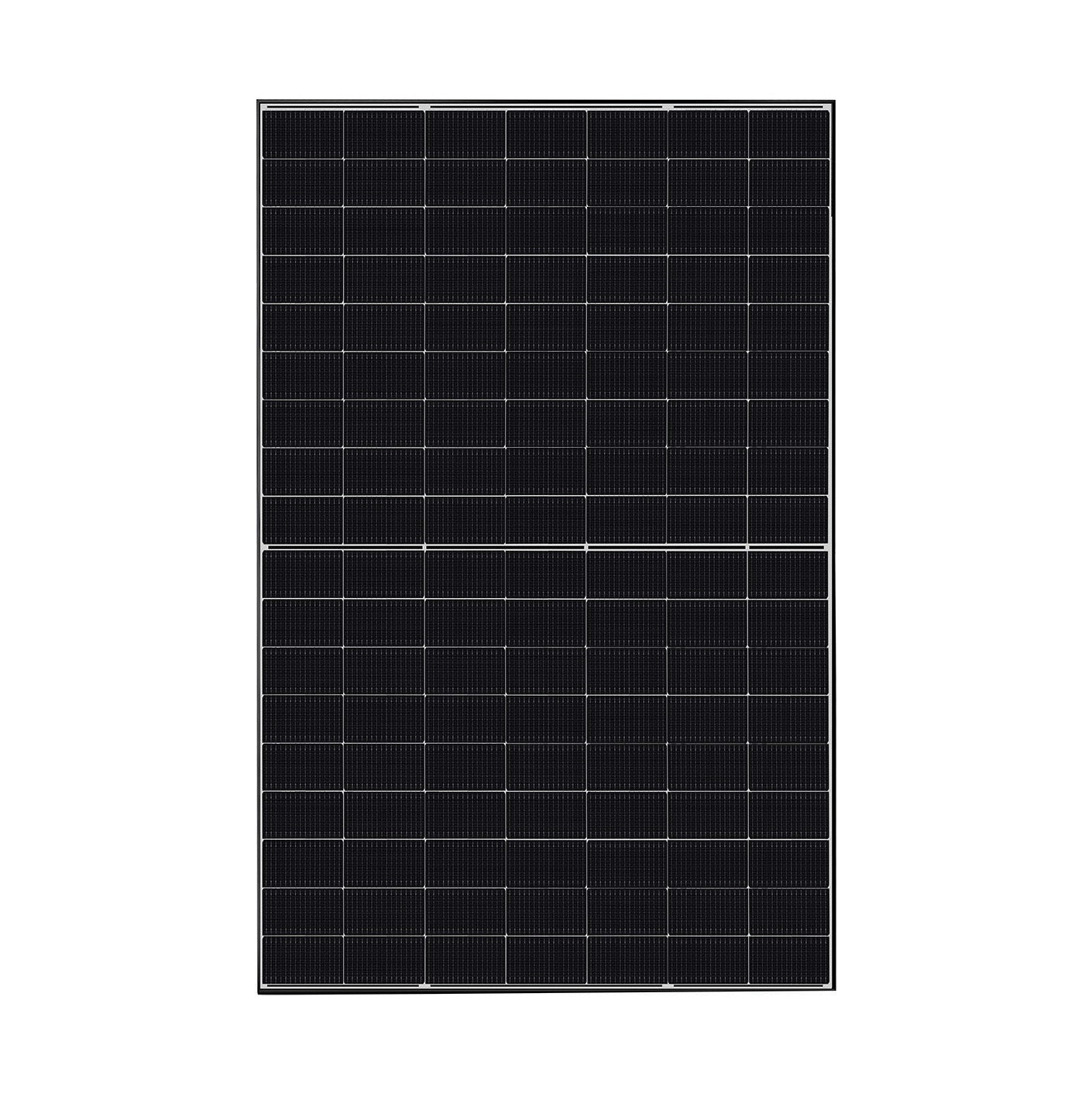

Panasonic 510W N-Type TOPCon Dual Glass Bifacial Solar Module
Panasonic 510W N-Type TOPCon Dual Glass Bifacial Solar Module
The Anchor by Panasonic N-Type TOPCon module delivers elite efficiency of up to 22.9% through advanced cell technology and features a dual-glass bifacial design that can provide up to a 25% additional power gain depending on the installation site. Built for superior durability, it is tested to withstand a 5400Pa snow load and 2400Pa wind load , all while maintaining a sophisticated all-black aesthetic. Furthermore, it ensures long-term reliability with minimal degradation, guaranteed at only 1% in the first year and a lowest annual degradation of 0.4% over its 30-year performance life.
Couldn't load pickup availability
50 in stock
View full details
More Information
Key Features
Nominal Power (Pmax) - 490W - 510W
Cell Type - N-Type TOPCon (108 Half-Cells)
Dimensions - 1961 x 1134 x 30 mm
Weight - 23.5 kg
Glass - 1.6 mm semi-tempered glass (Front & Rear)
Connector - MC4-Original
Junction Box - IP68 Rated, 3 Split
Temperature Coeff. (Pmax) - −0.29%/∘C
Warranty - 25 Years
Product Specifications
Brand: Anchor
Manufacturer: Panasonic
Model Code: AE10TDXXXUHC16B6
Series: N-Type TOPCon
Wattage Range: 490W, 495W, 500W, 505W, 510W
Cell Type: 108 Half-Cell , N-Type TOPCon , 182mm*210mm
Module Type: Bifacial , Dual Glass
Appearance: All Black
Efficiency: 22.9% Maximum Efficiency
System Voltage: 1500V DC
Warranty: 25-Year Product Warranty , 30-Year Performance Warranty
Degradation: 1% First Year , 0.4% Annual Degradation
Resistance: PID Resistant , Zero LID Loss
Load Rating: 5400Pa Snow Load , 2400Pa Wind Load
Bifaciality: 80% +/-5% Bifaciality Factor
Standards: IEC 61215, IEC 61730, IEC 61701, IEC 62716
Region: Australia & New Zealand (AUS & NZ)
Application: Residential, Commercial & Industrial
